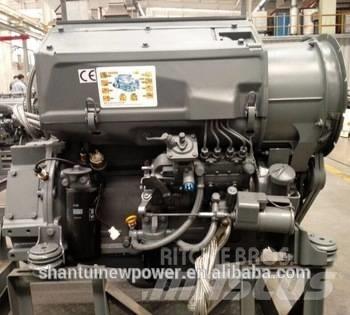

Deutz Engine BF4L913

Hiukkassuodatin, Turbo

MODEL OF DIESEL ENGINE BF4L913 NUMBER OF CYLINDER 4 NUMBER OF STROKE 4 COOLING WAY AIR-COOLED RATED POWER (KW/RPM) 47/1500 55/1800 66/2300 78/2500 CHAMBER TYPE DIRECT INJECTION BORE/STROKE(mm) 102/125 DISPLACEMENT(L) 4.086 AUTOMOTIVE POWER 78(106)/2500 AS PER DIN70020  (kW(PH)/r/min) ISO 3046/(IFN )NET MAX POWER HIGHLY INTERMITTENT 78(106)/2500 BRAKE FUEL STOP POWER (kW(ps)/r/min) MAX POWER INTERMITTENT 72(98)/2500 ISO STANDARD FUEL STOP POWER (ICFN) kW(PH)/r/min MAX 66(90)/2300 kW(PH)/r/min MIN 47(64)/1500 MAX.YORQUE AS PER DIN70020  (N.m/r/min) 342/16500 NET WEIGHT(kg) 350 DIESEL ENGINE SUPPORT SPACE(Dmm) 575 TYPE OF STANDARD FLYWHEEL CASING(SAE) 2+3+4 STARTING WAY ELECTRIC LUBRICATING WAY PRESSURE LUBRICATION ROTATION DIRECTION COUNTER-CLOCKWISE NET DIMENSION(L×W×H)(mm) 725×665×800
