Putzmeister M49-5

Price excl. VAT

Images35Videos1

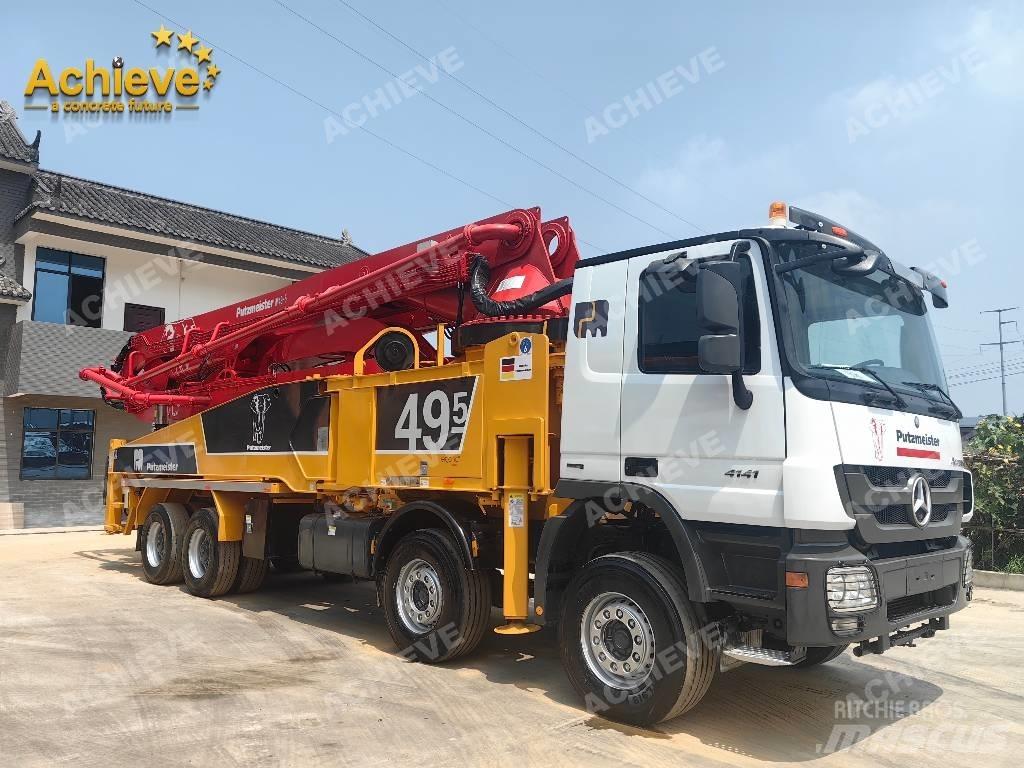

Putzmeister M49-5 Concrete pump trucks
Putzmeister M49-5 Concrete pump trucks
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Concrete pump trucks
Brand / model
Putzmeister M49-5
Year of manufacture
2013
Hours of use
3 000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
8A178F24

PRICING

Choose currency

DETAILS

Internal stock no.
AICPT026
Number of boom sections
5
Latest inspection
2024-09-26
Gross Weight
32 000 kg
Boom length
400 cm
Max horizontal reach
3 730 cm
Max vertical reach
4 160 cm
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
11500 x 2500 x 4200 mm
Emission level
Stage V / Tier V
Engine manufacturer
Mercedes Benz OM501LA.III/17
Pump type
Piston
Chassi manufacturer
Mercedes Benz
Tyre brand
Mercedes Benz
Production country
China
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Boom M 42-5 Sections 5 Reach height m 41.6 Horizontal reach gross m 37.3 net m 34.5 Reach depth max. m 31.0 Unfolding height m 8.6 End hose length m 4 Folding system RZ Delivery line DN 125 Pump BSF .16 H .17 i LS Rod side Output m³/h 160 - Delivery pressure bar 85 - Strokes 1/min. 31 - Piston side Output m³/h 108 170 Delivery pressure bar 130 85 Strokes 1/min. 21 27 Delivery cylinder Ø mm 230 250 Stroke mm 2100 2100
Other information
Truck-mounted concrete pump 49-5 Efficiency and flexibility on 4 axles Get ahead with 5 arms 49-5, this means a 49 m vertical reach distributed over 5 arms with a compact design in roll Z-folding system. 5 arms, this means a high degree of versatility. Optimized kinematics also ensures that there is no noticeable dead space. A placing boom in roll Z-folding system combines a compact design with a low unfolding height, optimum slip characteristics and the best use of the horizontal reach from the front edge of the truck. This means that you benefit from the advantages of the roll and of the Z-folding system in an economic way. Get closer to the action with less space requirement Set-up times can be kept as short as possible. With the TRDI support developed by Putzmeister, you save time and space, without compromising on safety. Double telescoping support legs can also be securely placed in minimal spaces between obstacles. Thanks to the optional One Side SupportShow more
