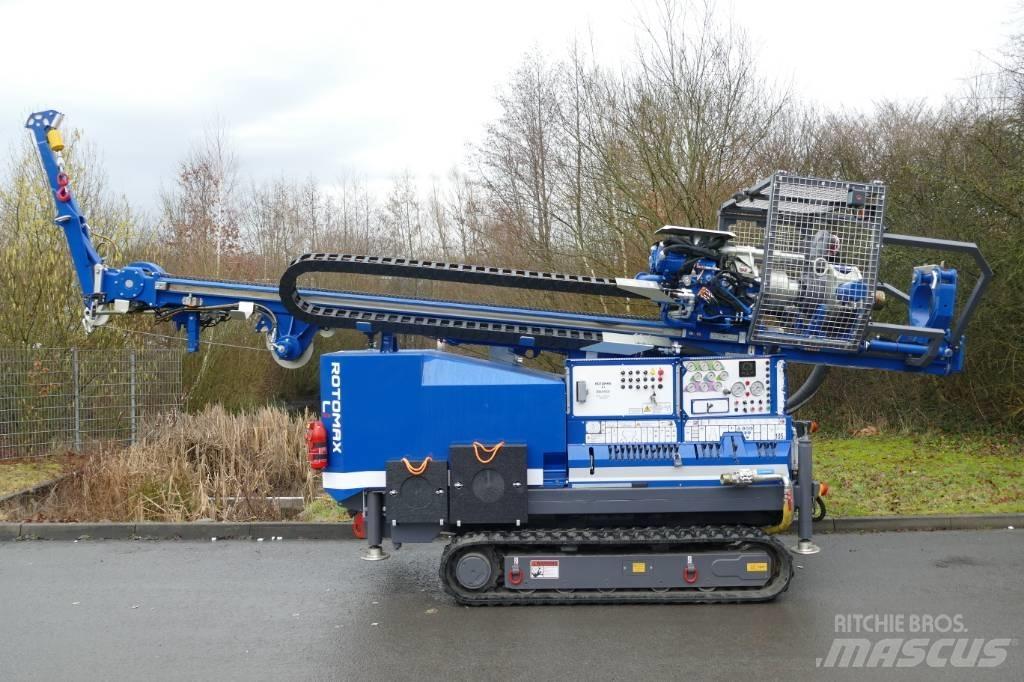

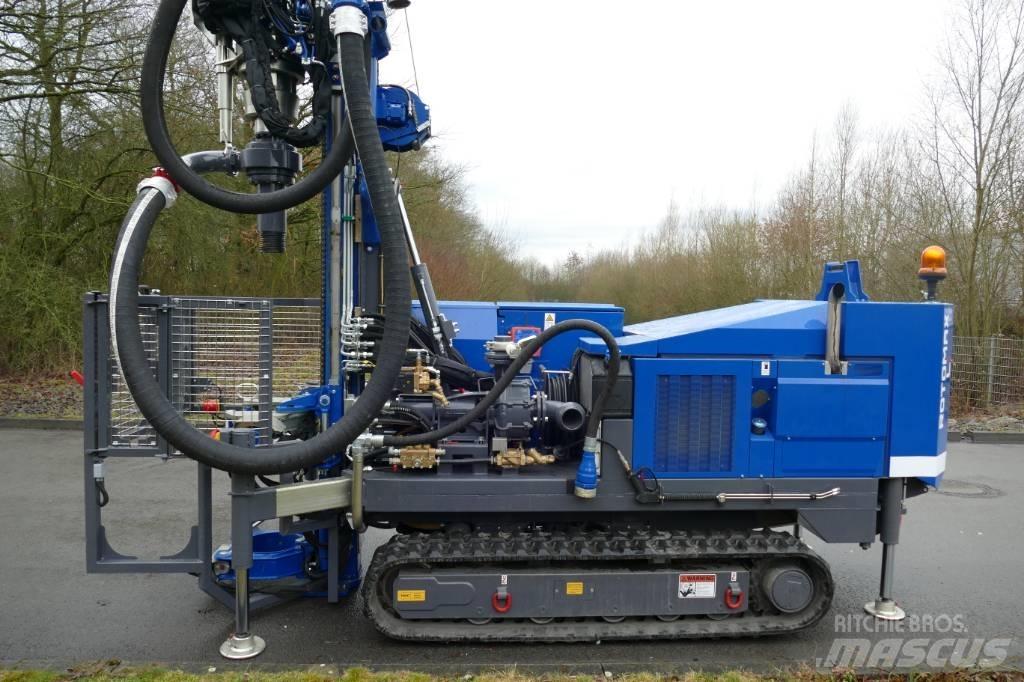

Geotec ROTOMAX Li

Veroton hinta

Hinnasta sovitaan erikseen

FavoriteSuosikki
shareJaa
Save searchTallenna haku
report adRaportoi epäilyttävä ilmoitus

INFO

Tuoteryhmä
Kaivonporauslaitteet
Merkki / malli
Geotec ROTOMAX Li
Vuosimalli
2022
Erityistä
Uusi/Käyttämätön
Sijainti
Nordkirchen
Maa
Saksa
Yleisarvosana
1
2
3
4
5
Mascus ID
B88F05AC

LISÄTIEDOT

Viim. katsastus
2022
Huoltosopimus
Kyllä
Moottori
136KM
Moottorin valmistaja.
PERKINS
Päästöluokka
Stage V
Jäähdytysjärjestelmä
Vesi
Syöttötapa
Sylinteri
Iskutunnit
0
Iskutunnit
0
Kangenkäsittelylaitteen malli
GEOTEC
Syöttölaitteen malli
GEOTEC
Telojen malli
GEOTEC
Alusta
Tela-alusta
Kunto tiedot/Takuu
1000 Hours / 1 Year
Kuljetuspaino
6 000 kg
Kuljetusmitat (PxLxK)
4000 x 1600 x 2400 mm
Eturenkaiden kunto
100
Takarenkaiden kunto
100
Toimitusehdot
EXW
Lisätietoja
EVERY MACHINE LEAVING OUR FACTORY - HAS DIFFERENT EQUIPMENT CONFIGURATIONS! BELOW YOU WILL FIND AN EXAMPLE OFFER! IF YOU HAVE QUESTION, PLEASE CONTACT US! WE ALSO HELP IN FINANCING! Drive: 100 kW (136 HP) 4-cylinder turbo diesel engine with Stage 5 and direct drive hydraulic pumps, pressure filter, oil cooler, bypass filter for the hydraulic circuit and AdBlue. Hydraulic system: Dual-circuit, load-independent primary hydraulics (1x load-responsive, 1x permanent), proportional, partially direct or remote controlled Control Valves: Main Control Valves - Auxiliary control blocks partially controlled manually Pressure indications: system pressure of the hydraulic circuits, supply from the purge pressure Drive type: gear with feed, disc brake Speed: Normal and rapid feed (2 speeds) (Max. 5 possible) Drilling pressure: max. 2,500 kg Lifting: max. 9,000 kg Stroke: 4,200 mm Drilling gear: Vibration-stable drilling gear with proportional hydraulic motor. Speed ​​range: 0 - 350 min-1 Torque range: 0 - 10,000 Nm Speeds and torques are set with the potentiometer on the control panel. Drilling pipes; GT95 (Customization possible) Maximum mounting diameter on the head: 178 mm (with more adapter) Grease lubrication system drilling gear (active cylinders) Clamping head Articulated rollers Sideshift Middle Pipe Clamp: Clamping range: Ø80 mm - Ø324 mm Swivel angle: 30 ° Breakaway torque: 20 kN Lifting force: 120 kN Lifting height: 400 mm Lubrication: Central lubrication beam Specifications are subject to change. Each machine is individually equipped.Näytä lisää

GEOTEC BOHRTECHNIK

Aspastrasse 26 59394 Nordkirchen Nordrhein-Westfalen Saksa
