Vahva FORTI 200

Veroton hinta

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Kauhanpyörittäjät
Vahva FORTI 200 Kauhanpyörittäjät
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Kauhanpyörittäjät
Merkki / malli
Vahva FORTI 200
Vuosimalli
2015
Erityistä
Demo
Sijainti
Saue
Maa
Viro
Yleisarvosana
1
2
3
4
5
Mascus ID
24BE0111

HINTA

Toisessa valuutassa

LISÄTIEDOT

Varastonumero
VR50000
Huoltosopimus
Kyllä
Sopii seuraaviin
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

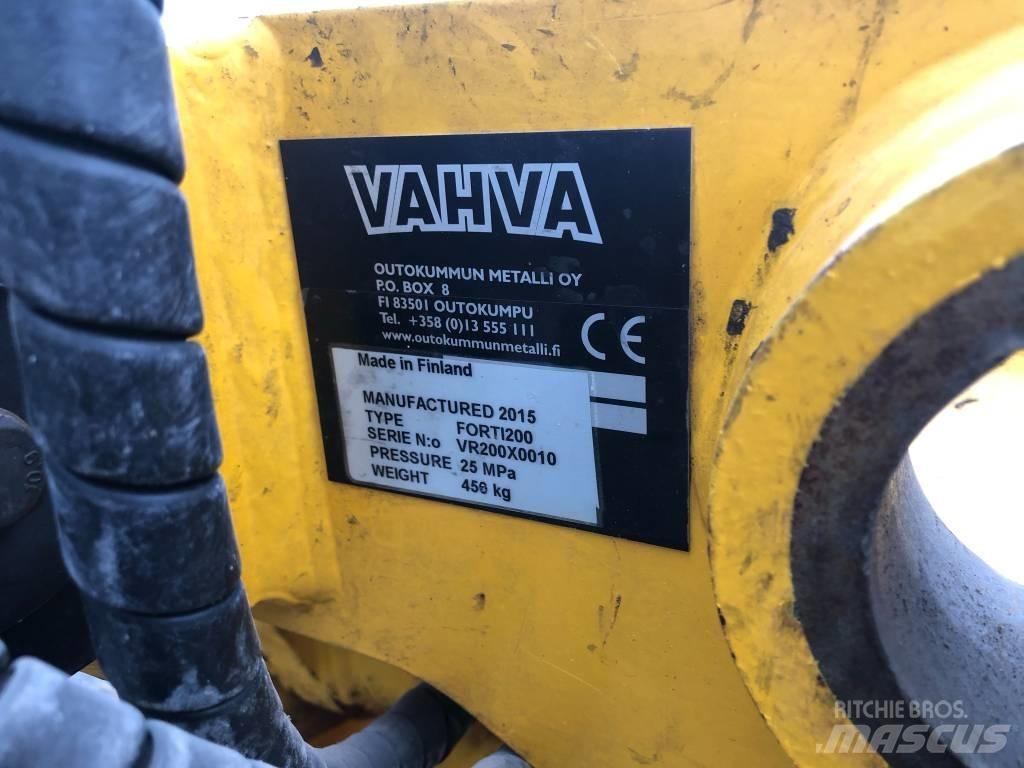

Valmistenumero
VR200X0010
Työpaine
250 bar
Öljynvirtauksen tarve
80 l/min
Kuljetuspaino
450 kg
Kuljetusmitat (PxLxK)
990 x 720 x 280 mm
Valmistusmaa
Suomi
Toimitusehdot
EXW
Sertifikaatit
CE
Lisätietoja

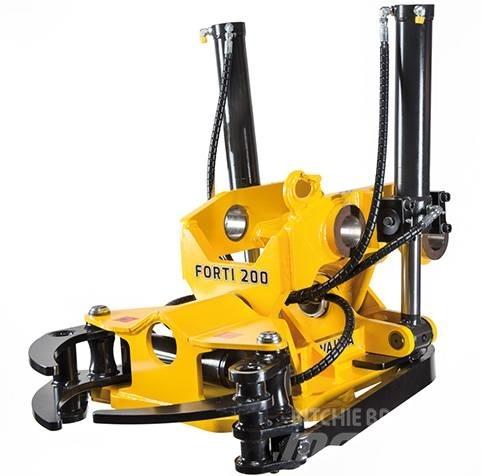

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Näytä lisää

Sautec AS

Tule 10 76505 Saue Harjumaa Viro
