INFO

Tuoteryhmä
Lämmitys- ja sulatuslaitteet
Merkki / malli
Frick RWF II 399H
Vuosimalli
2010
Erityistä
Käytetty
Sijainti
Langley, British Columbia
Maa
Kanada
Mascus ID
BD0819CD

HINTA

Toisessa valuutassa

LISÄTIEDOT

Varastonumero
101396
Lisätietoja

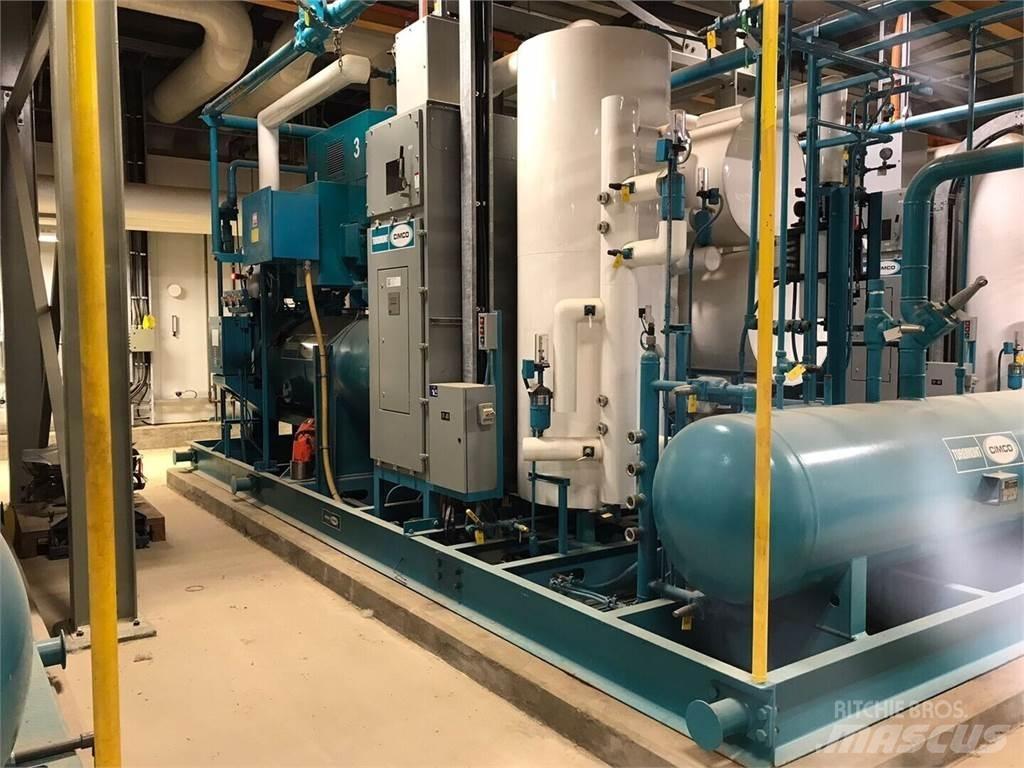

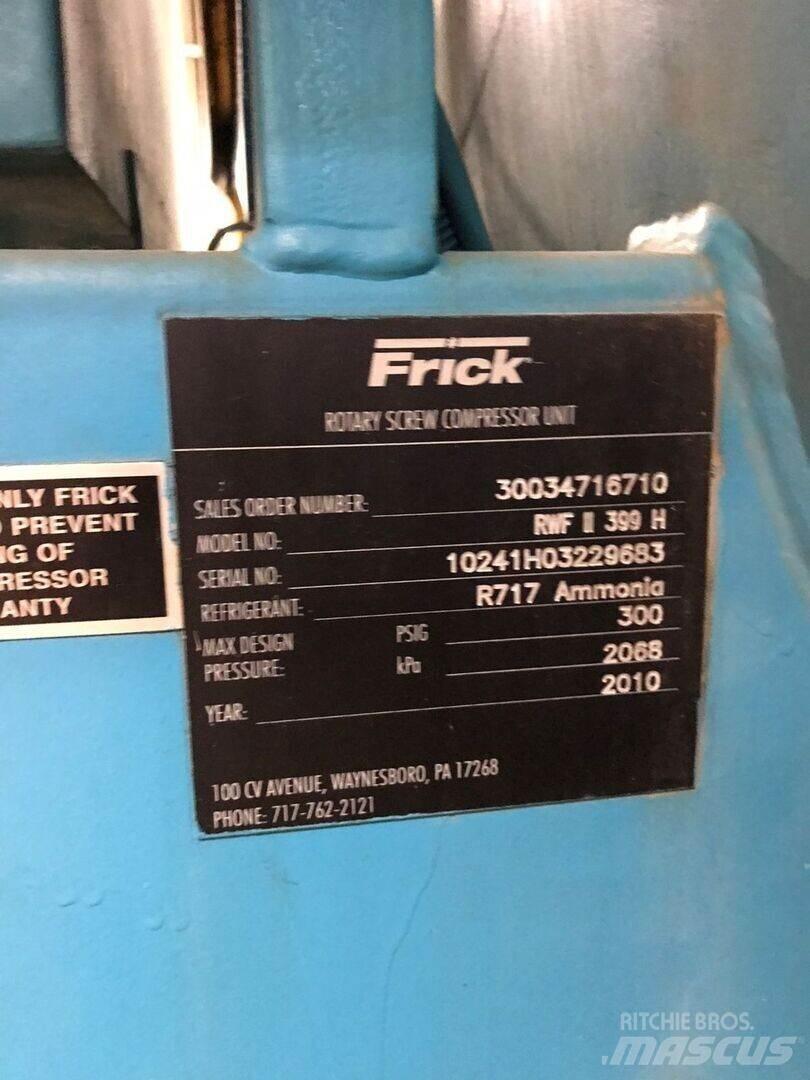

800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package Title: 800 hp, 2347 CFM Rotary Screw Compressor and Aircooled Condenser Package SKU: 101396 Model: RWF II 399H Year: 2010 Condition: Used ElectricalVoltage:4160volts CFM:2347cfm ** Included Equipment: - One Compressor Package - Three Aircooled Condenser Units [PDF Condenser Units](... Technical Drawings](... Package Package Model: RWF II 399H Refrigerant: R717 Ammonia Max Design Pressure: 300 psig Compressor Model: SGC 2817 Horsepower: 800 hp FLA: 98 A Max. Allowable Pressure: 400 psig Max. Driver Speed: 3580 rpm (3) Aircooled Condenser Units (NH3) Model: S-MCAH 092B/2x5-N(H) Capacity: 1,855,507 Btu/h Air Flow: 155,793 cfm Rated Working Pressure: 464 psi Refrigerant: NH3 Electrical Supply: 575 V, 3-ph, 60 Hz Fan Motor HP: 4 hp Qty Fan Motors Per Condenser: 10 RPM: 910 rpm ** The 50 hp and 25 hp Pump Packages shown in the PDFs above can be purchased at additional cost if desired. ** Contact for more info.Näytä lisää
