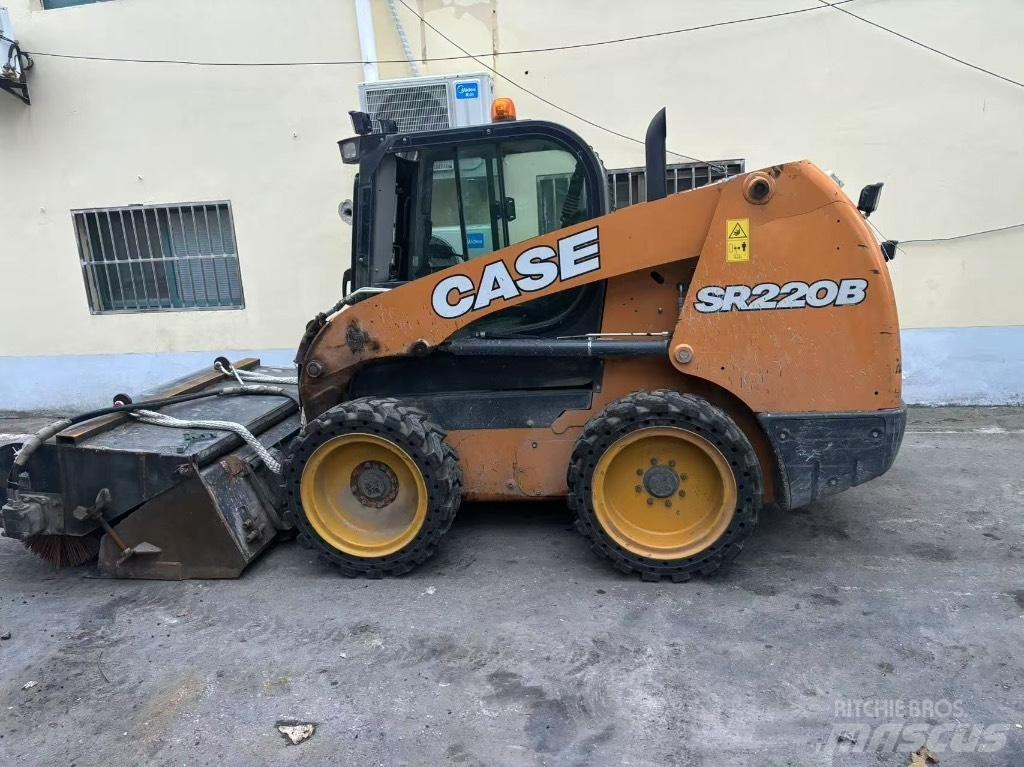

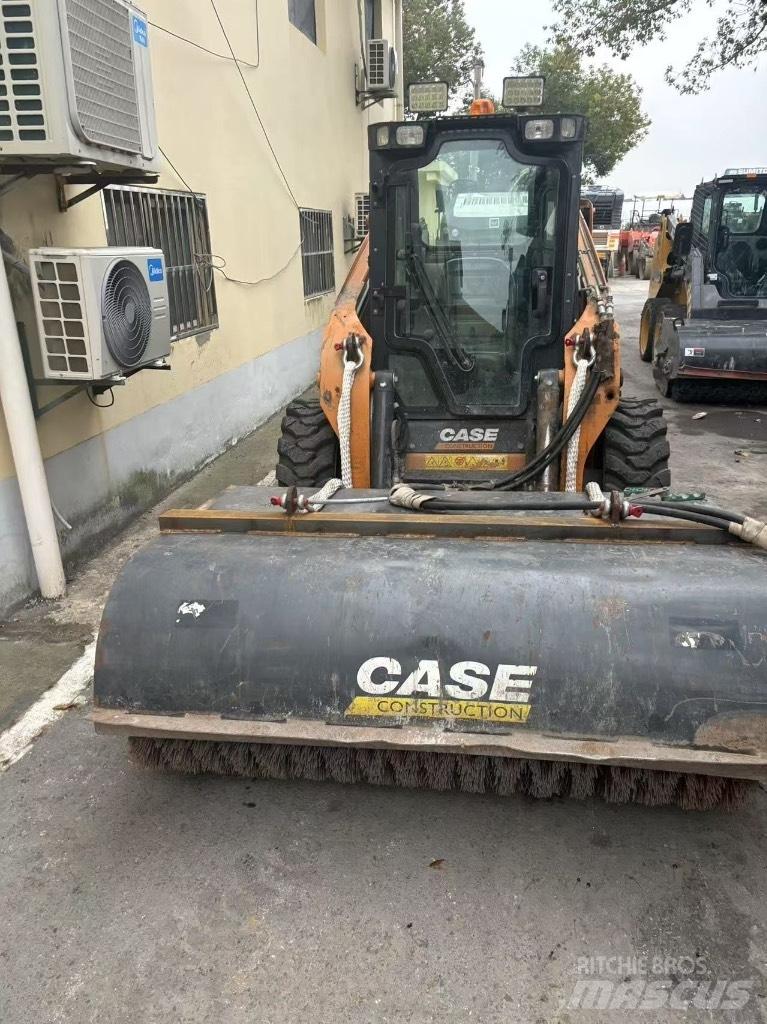

Case SR 220B

The main parameters of the Kais SR220B skid steer loader are as follows: Rated loading capacity: 1000kg one Overturning load: 1996kg one Whole machine weight: 3350kg one Bucket lifting force: 38.2kN one Lifting force of boom: 27.2kN one Standard bucket capacity: 0.41-0.55m ³ one Walking mode: tire type one Engine model: Case 432T/M3 one two Engine type: Diesel direct injection one two Rated power: 61kW/2500rpm one Maximum torque: 305N · m/1400rpm one Displacement: 3.2L one two Hydraulic system: Hydraulic pump flow rate 85L/min, rated working pressure 21Mpa one Transmission system: In the form of a drive motor, the maximum driving speed is 7.2km/h (forward) and 11.9km/h (backward) one Tire size: 12 × 16.5 one Fuel tank capacity: 96.5L one Hydraulic oil tank capacity: 22.4L one Engine oil capacity: 10L one Machine dimensions: total length (with bucket) 3600mm, total length (without accessories) 3000mm, total width 1785mm, total height 2000mm, wheelbase 1300mm, wheelbase 1500mm, minimum ground clearance 200mm, bucket width 1830mm one These parameters provide detailed specifications and performance indicators for the Case SR220B skid steer loader, helping users to fully understand the technical characteristics of the equipment.
