INFO

Tuoteryhmä
Minikaivukoneet < 7t
Merkki / malli

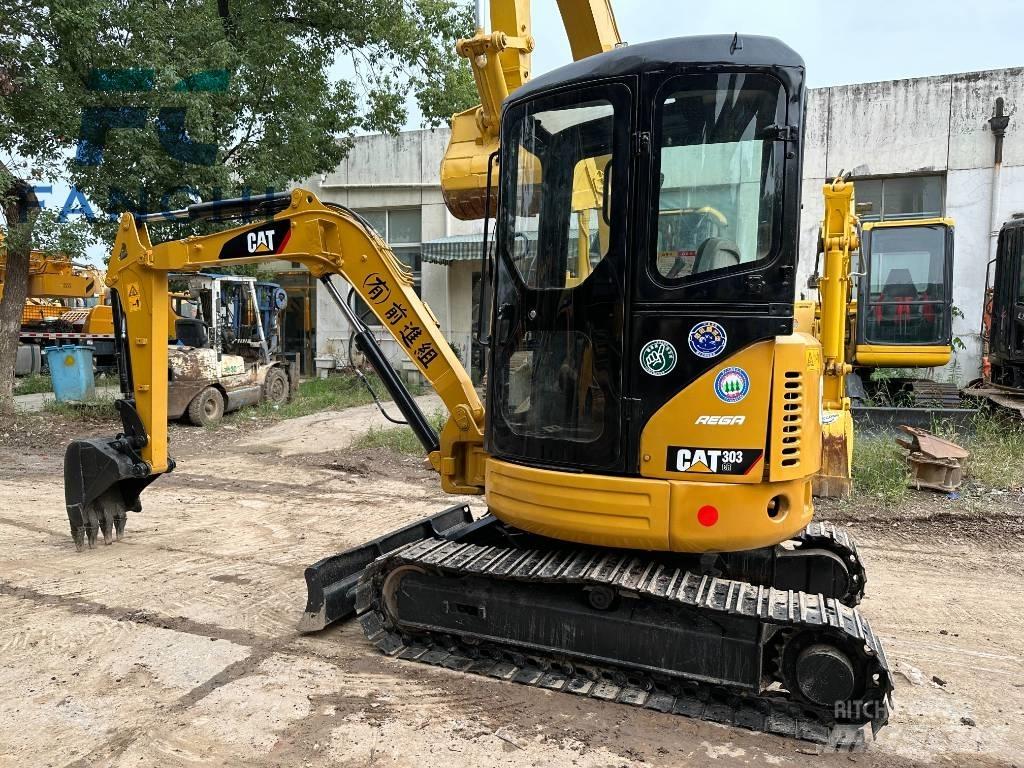

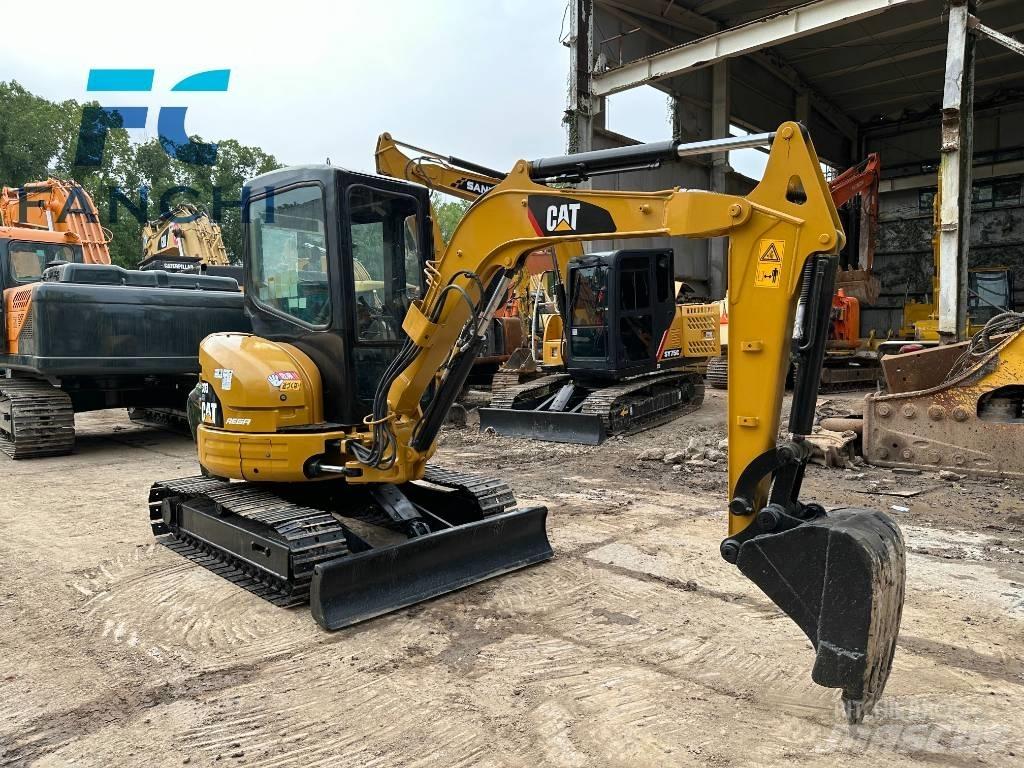

CAT 303 CR
Vuosimalli
2023
Käyttötunnit
400 h
Erityistä
Entisöity
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
A2D0DB59

HINTA

Toisessa valuutassa

LISÄTIEDOT

Käyttövoima
Diesel
Ed. omistajien lkm.
1
Alustan kunto
good
Kokonaispaino
3 548 kg
Lisähydrauliikan tuotto
66 l/min
Päästöluokka
Stage V / Tier IV final
Telojen leveys
300 mm
Kauhan kapasiteetti
0,12 m3
Kuljetusmitat (PxLxK)
473017802.5 m
Alkuperäinen väri
YELLOW

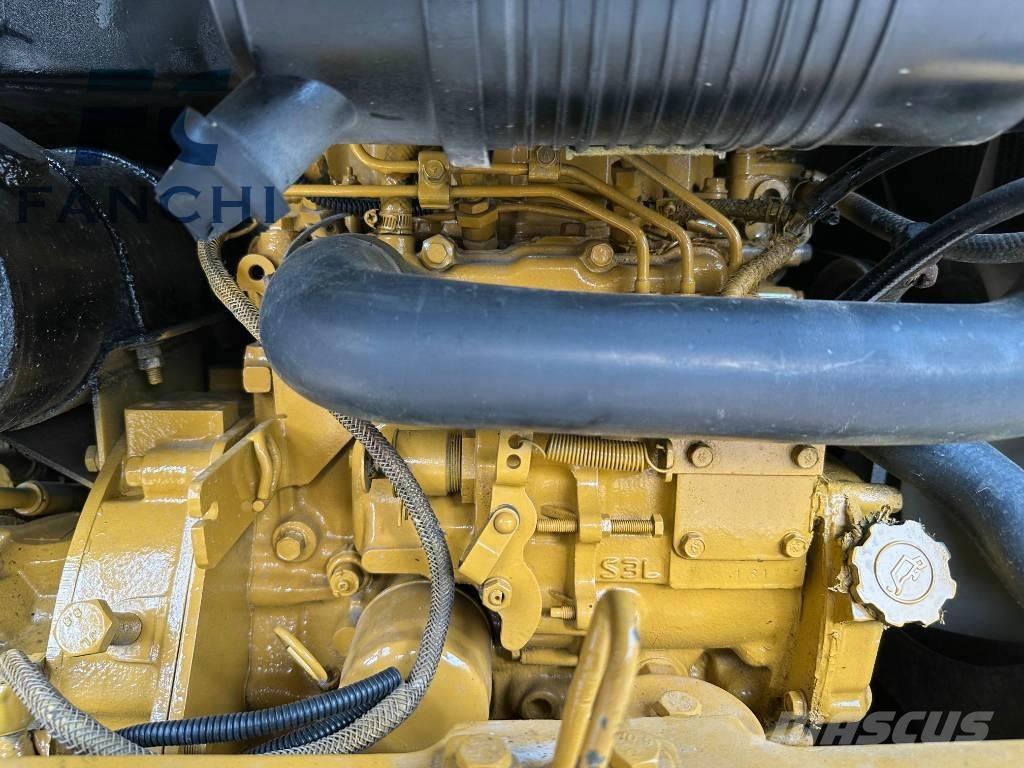

Moottori
Cat C1.8
Moottorin teho
23,6 kW (32,1 hv)
Moottorin valmistaja.
japan
Renkaiden merkki
original
Kunto tiedot/Takuu
good
Valmistusmaa
Japani
Toimitusehdot
FOB, CIF, EXW
Sertifikaatit
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Lisävarusteet
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Muut varusteet
Manuaalinen / mekaaninen pikaliitin
Vasara/saksihyd
Ilmastointilaite
Diesel lämmitin
Näytä lisää
Lisätietoja
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Näytä lisää

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Kiina
