Maeda MC285CB-3

Veroton hinta

Compnay LOGO
Images6Videos1

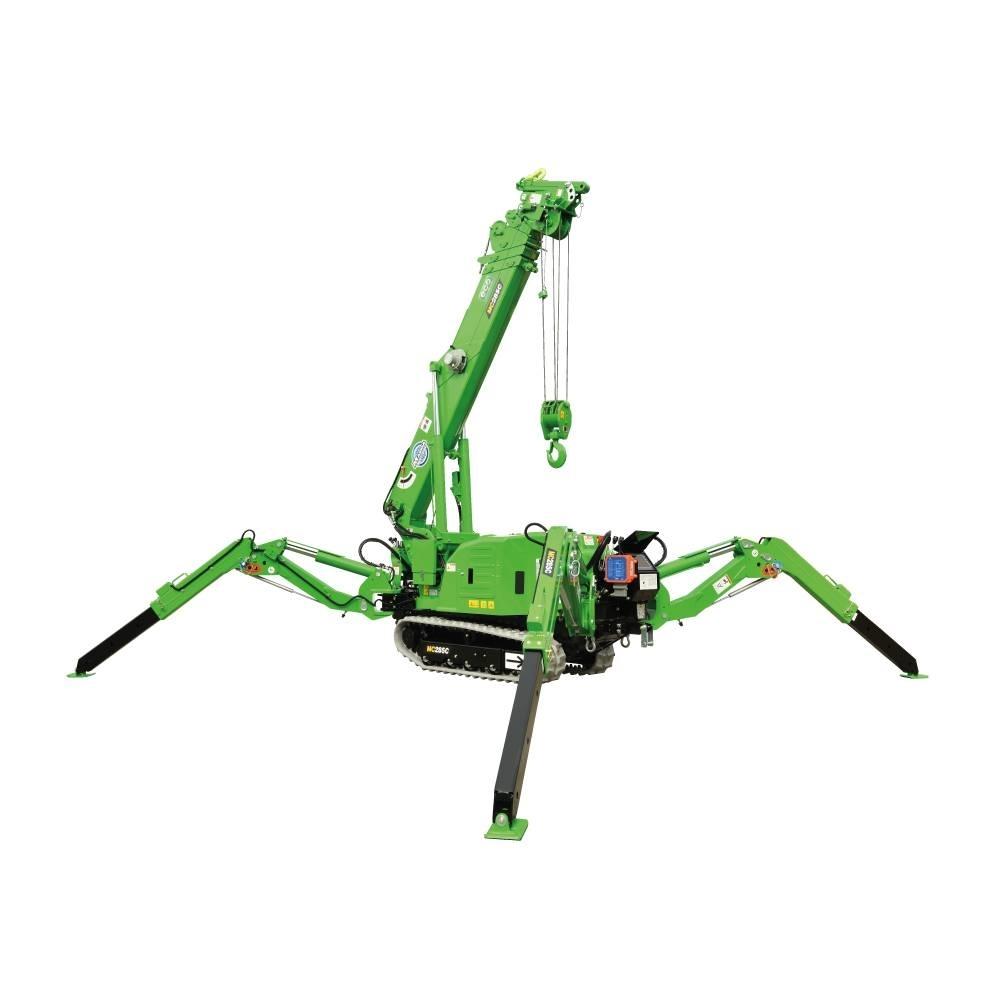

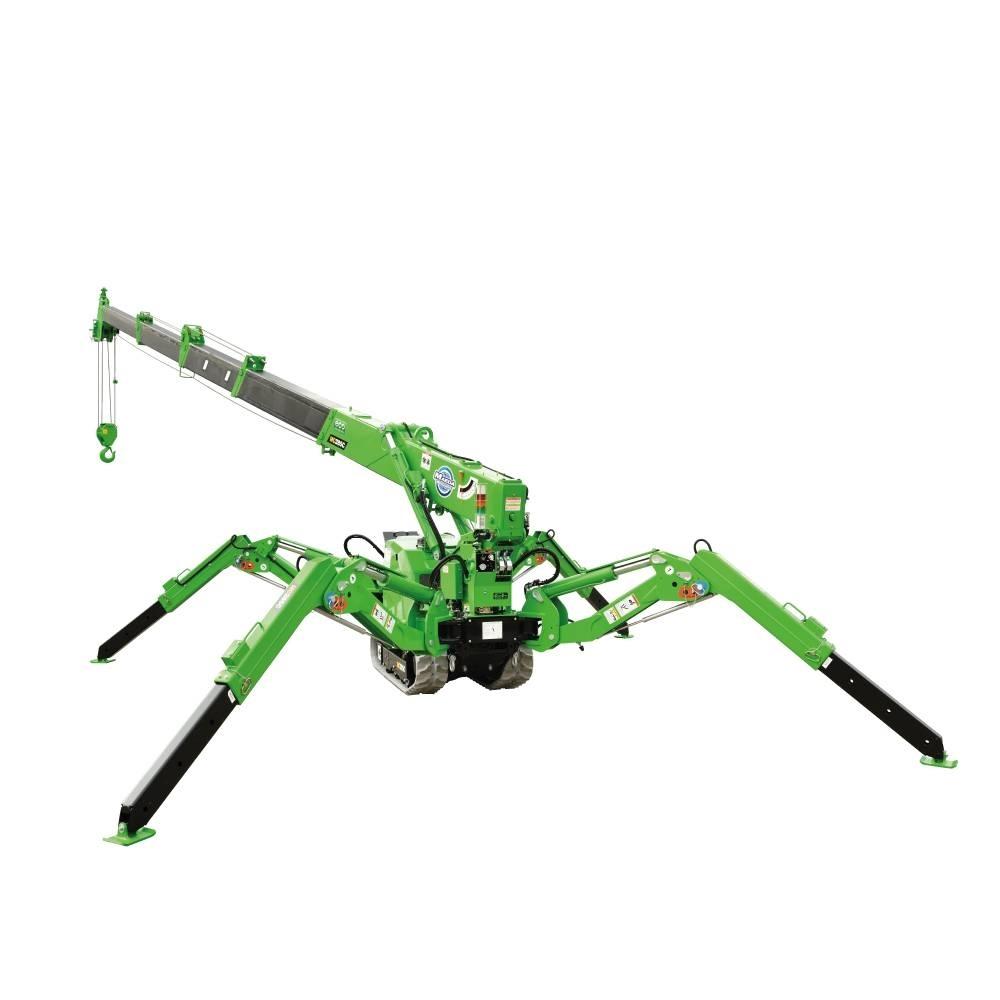

Maeda MC285CB-3 Mininosturit
Maeda MC285CB-3 Mininosturit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Mininosturit
Merkki / malli
Maeda MC285CB-3
Vuosimalli
2021
Erityistä
Uusi/Käyttämätön
Sijainti
MÖLNLYCKE, Västra Götalands län
Maa
Ruotsi
Yleisarvosana
1
2
3
4
5
Mascus ID
CA2FBCA2

HINTA

Toisessa valuutassa

LISÄTIEDOT

Huoltosopimus
Kyllä
Kokonaispaino
1 995 kg
Nostokyky
2 820 kg
Päästöluokka
Stage V
Suurin nostoteho puomi ojennettuna
150 kg
Moottorin valmistaja.
Toshiba
Nostokorkeus
870 cm
Nostokorkeus - puomi vaaka-asennossa
820 500 cm
Kuljetusmitat (PxLxK)
2800 x 750 x 1470 mm
Kunto tiedot/Takuu
Yes, 2 year
Eturenkaiden kunto
100
Takarenkaiden kunto
100
Valmistusmaa
Japani
Sertifikaatit
EPA, CE, ANSI
Lisätietoja
The MC285CB-3 is the very first fully electric powered mini crane from Maeda. With absolute zero emissions it can safely be used in sensitive indoor environments, and when regulations need to be achieved. Improved energy efficiency and productivity as well as reduced ventilation needs and maintenance costs are some of the benefits beyond the clear environmental aspect. With a lithium-ion battery, this crane can be operated continuously for over 9 hours, and be fully charged in only 3.5 hours. On top of that, continuous operation is possible while charging which facilitates use. The crane capacity and operating speeds have not been compromised since it equals the regular MC285C-3. The battery-operated MC285CB-3 has a maximum capacity of 2.82 ton x 1.4m. Maximum lifting height on the ground is 8.7m and the maximum working radius is 8.205m x 0.15t. All this is packed in this innovative piece of engineering that only weighs in at 1995kg. As always with products from Maeda we can expect the highest quality and reliability together with great guarantees. Crane Capacity – 2.82t x 1.4m Max. Working Radius – 8.205m x 0.15t Max. Lifting Height – 8.7m Max. Reach Below Ground – 10.1m (4 falls) / 40.4m (single fall) Max. Reach Below Ground (Aux Winch) – 100m (single fall) Outrigger Max. Extended Width – (Lat.) 4,782mm x (Fr.) 4,718mm x (Re.) 3,990mm Travel Speed – 0-2.0km/h Travel Ground Pressure – 50.2kpa (0.512kgf/cm2) Battery Type – Lithium Titanate Battery 5-hour rate capacity – DC55V – 135Ah Input Voltage / current – Single phase AC200V / 16A, AC100V / 15A Charging time (with AC-200V) – 80% : 2h 20min / 100% : 3h 30min Continuous operating time (crane) – 9h 30 min (based on Maeda’s assumed cycle) Charging during operation – Available Options – Black rubber tracks, Single fall hook, 850kg searcher hook. Dimensions – 2,800mm (L) x 750mm (W) x 1,470mm (H) Machine Weight – 1,995kgNäytä lisää
