BIK FC-110
Veroton hinta
Hinnasta sovitaan erikseen
2
Suosikki
Jaa
Tallenna haku
Raportoi epäilyttävä ilmoitusINFO
Tuoteryhmä
Muut nostokoneet
Merkki / malli
BIK FC-110
Erityistä
Uusi/Käyttämätön
Sijainti
Milford, Massachusetts
Maa
Yhdysvallat
Yleisarvosana
1
2
3
4
5
Mascus ID
6A58B12B
LISÄTIEDOT
Lisätietoja
BOOM DETAILS

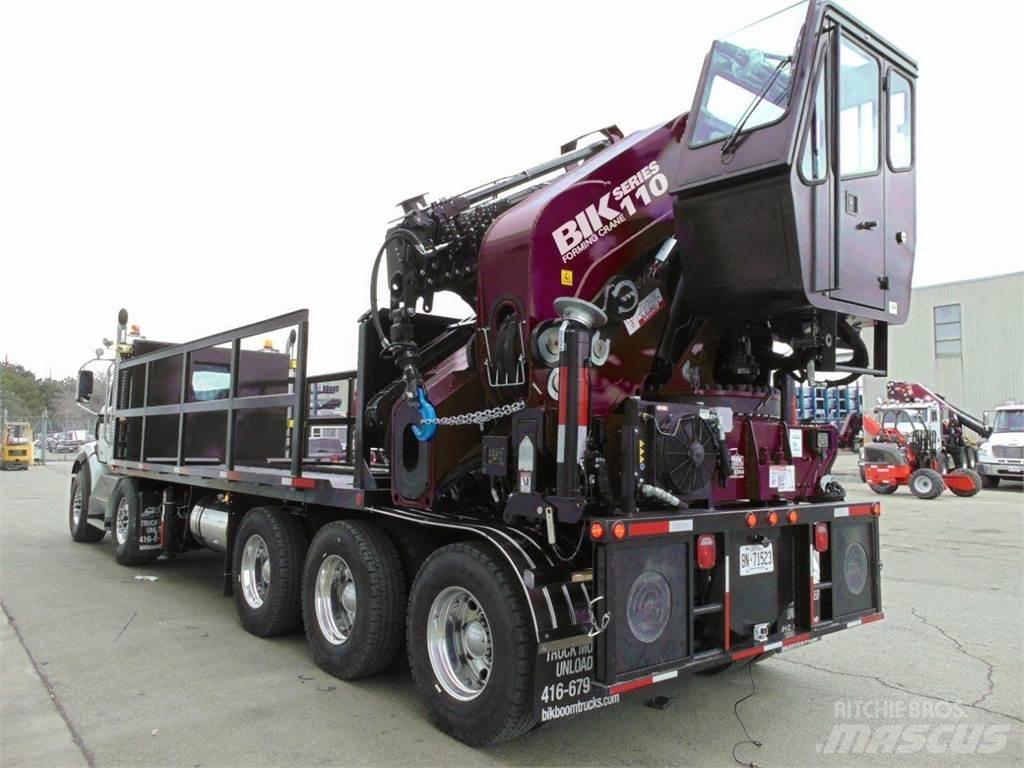

New – BIK “Form-Crane” Series FC-
110
By PM – 100 ton/m
Folding Knuckle Boom with jib – 8+6 extensions – 110’ Horizontal Reach
Main Boom Horizontal Capacity:
36,800 lb ... 16’
20,000 lb ... 23’
16,000 lb ... 33’
1,000 lb ... 47’
7,200 lb ... 67’
Jib Horizontal Capacity:
3,200 lb ... 76’
2,600 lb ... 87’
2,200 lb ... 100’
2,000 lb ... 104’
1,600 lb ... 110’
PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders, Extra function plumbed to boom tip w/Hyd rotator & T-hook
180 degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 28’ – 7” span
– 360 degree full load chart stability
Hydraulic Oil Cooler, high pressure return filter and min. 100 –gallon
hyd aluminum oil tank with gate valves mounted at front under deck
7 – Section DANFOSS
Proportional Control Valve at Top-Seat with Ladder Access – & SCANRECO
Proportional Radio Remote Control
PM – Power Tronic
onboard load & function monitoring system, Digital Load Indicator at top seat & remote
, electric/hyd overload protection
Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord – 5 level turtle (micro) slow down mode
Lifting winch on Main boom
plumbed to the end of jib with proper load hook & down weights
Installed END OF FRAME, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength
DECK DETAILS
New – 22’ x 102” Flat Deck:
Steel headboard w/ 4 Side Wrap Winches
Steel Checker plate Floor, winch bar and holder
Integral 6” sub-frame and extension at rear as torque box for boom with all proper engineered sheer platting
X-braces & support
Removable sides to hold in cages
2-Deck access Ladders, reflectors, conspicuity tape, Mud-flaps, 8-Winches and tracks (sliding) under deck (deck to be built same as your truck).

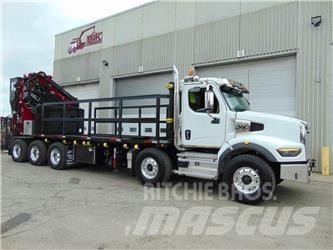

TRUCK DETAILS
New – Western Star 49X TA Steer /Tridrive (5 Axles total):
109,000 lb GVWR
Detroit Diesel 16L – 565 hp / 2,050 ft/lb torque, Engine Brake, Detroit 12 spd Automated Trans.
Truck cab white
(2) x 20,000 LB front tandem steer axles on Air Ride
with 425 / 65R22.5 tires
69,000 LB Tridrive Rears on Hendrickson Primax Air Ride suspension with 54” spread between drives
Double Frame
Polished ALCOA AluminumWheels front and outer rear
Polished dual Vertical Exhaust pipes
Chrome Grille & Bumper
80 gallon alum fuel tank
Truck Features Include:
A/C, Tilt/Telescopic steering, high level Interior, AM/FM stereo Bluetooth, air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups
, power windows/locks, Air ride cab, dual roof mounted strobe lights, trailer air tow package, etc…
Also Included
:
Auxiliary Extra-Wide hydraulic outriggers 23’ spread front mounted for 360 degree stability
1” Drawplate Plate at rear of truck frame
Aluminum locking checker plate toolbox installed
(4) PVC stabilizer pads – with holders (4 pcs)
Fully enclosed cab with heat & access steps from bumper
Back up camera with pass side blind side
Näytä lisää
