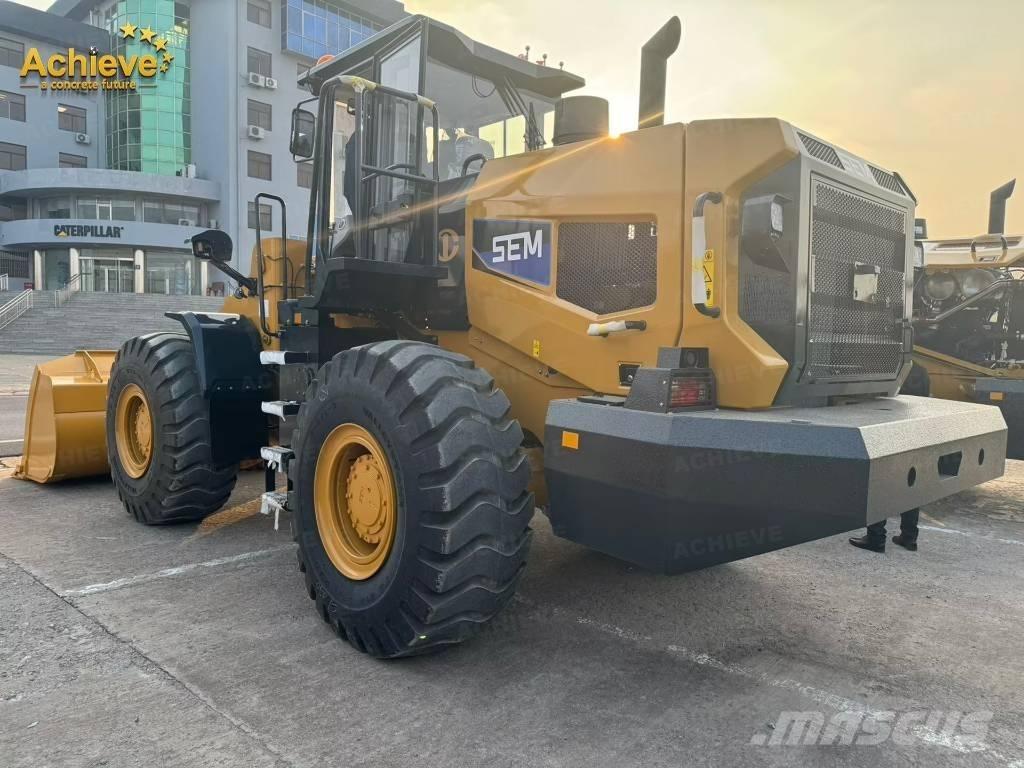

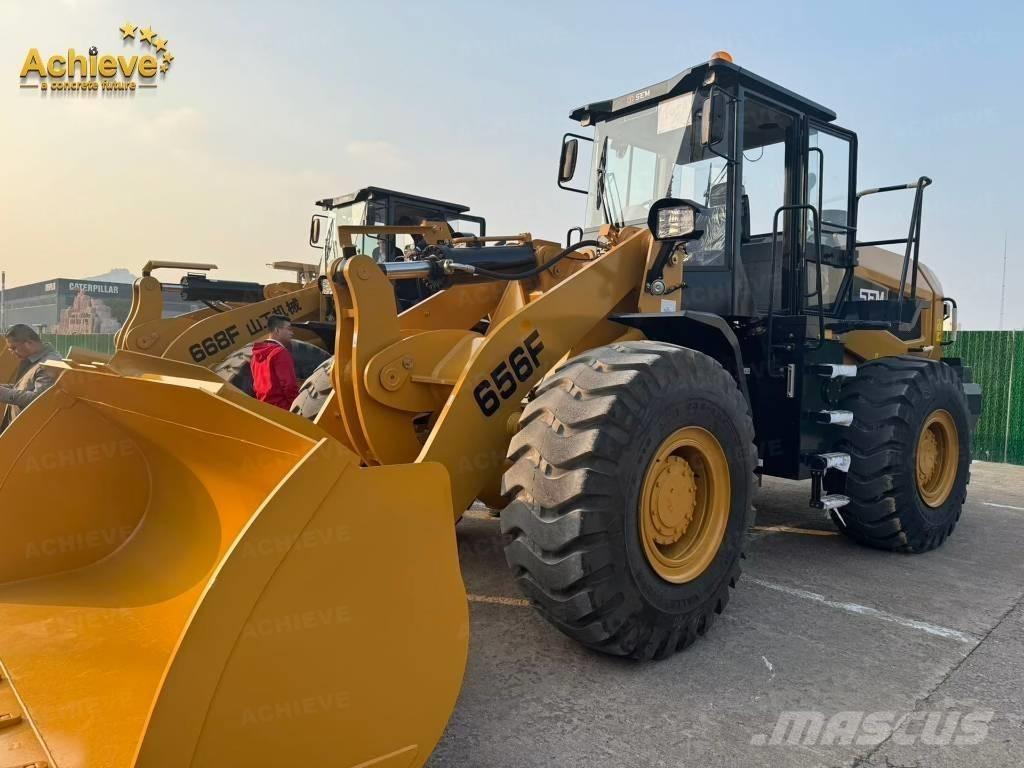

SEM 656F

Model Model SEM 656F Main Specifications Rated Load 5,500kg Operating Weight with Standard Bucket 17,385kg Bucket Capacity 2.6-5m³ Wheel Base 3,350mm Overall Dimension 8,472*3,117*3,465mm Max. Drawbar Force 170kN Breakout Force 161kN Dump Clearance 2,991mm B-Pin Height 4,162mm Transmission Transmission Type Countershaft, power shift Transmission Gears F4/R4 Torque Converter Type Single stage, 3 elements Forward I/Reverse I 7.6/7.6 Forward II/Reverse II 14/14 Forward III/Reverse III 22/22 Forward IV/Reverse IV 39/39 Maker & Type TR200 Axle (Axle, Tire & Brakes) Main Drive Type Spiral bevel gear, single stage Final Drive Reduction Type Planetary type, single stage Rear- oscillation +/- ±11 Engine Engine Model WD10G220E23 Rated Power 162kW Rated Speed 2,000r/min Displacement 9.7L Implement Hydraulic System Implement System Type Open center flow sharing Boom Raise Time 5.13s Hydraulic Cycle Time 9.3s System Pressure Setting 17MPa Brake System Service Brake Dry&caliper, air to oil control Parking Brake Drum/Shoe Steering System System Type Load sensing Steering Pump Type Gear pump System Pressure Setting 16MPa Steering Angle (L/R) 38±1 Tires Size 23.5-25 Type Bias Layer 16 Textured Type L-3
