Fabtec 5163/3625

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images5
Fabtec 5163/3625 Pyörien pesuasemat
Fabtec 5163/3625 Pyörien pesuasemat
Fabtec 5163/3625 Pyörien pesuasemat
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Pyörien pesuasemat
Merkki / malli
Fabtec 5163/3625
Vuosimalli
2025
Sijainti
Camrose, Alberta
Maa
Kanada
Mascus ID
64405346

LISÄTIEDOT

Varastonumero
2021-01-FT
Valmistusmaa
Kanada
Lisätietoja

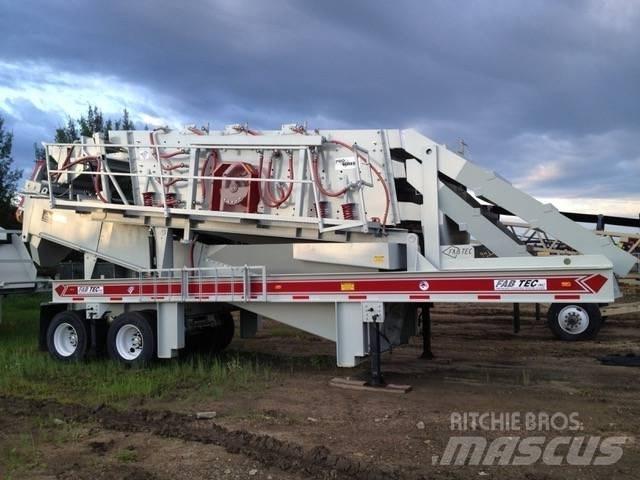

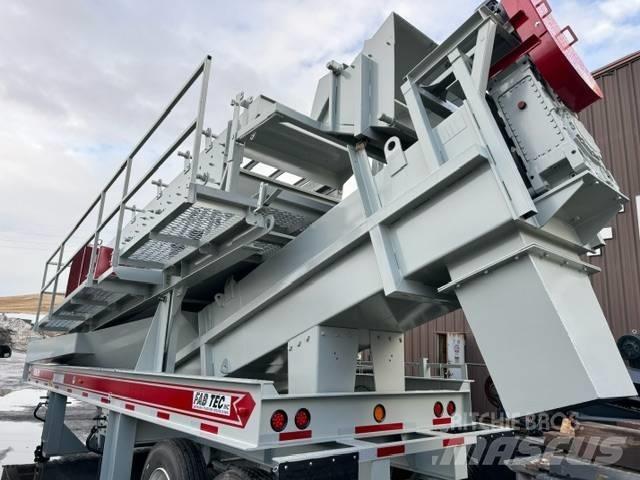

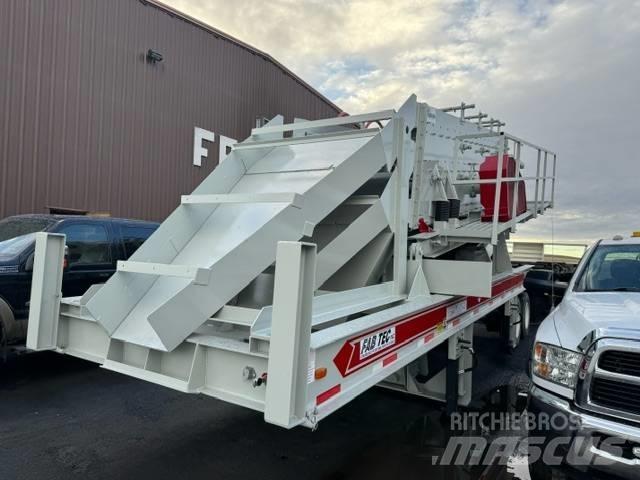

PORTABLE FAB TEC 5’ x 16’ – 3 DECK WASH PLANT WITH 36” x 25’ SANDSCREW: PRO 5’ x 16’ - 3 DECK INCLINE SCREEN: 1. 20 HP TEFC with pivot motor base and power and belt. 2. 3/8" PL side walls. 3. Huck bolted screen decks, constructed of 4" x 3" x 3/8" angle iron and 3" x 2" rectangular tubing, ½" x 3" FB crown bars. 4. AR lined discharge lips. 5. AR lined feed box. 6. Alco high temper isolation springs. 7. 100 MM Torrington spherical bearings designed for shaker screens. 8. Center support tube 9" with ½" wall and 2" thick flanges. 9. FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall. 10. Eccentrics with add on weights. 11. 10" WF sub frame 33# with C8" x 13.75# cross members. 12. Standard side tension formed clamp bars and ½" crown bar rubbers. AGGRETEK 36" x 25' SANDSCREW: 1. 15 HP Motor. 2. Oil lubricated heavy-duty gearbox. 3. Replaceable wear plates. 4. 100 TPH MAX. CAPACITY material size 3/8". (10) SPRAY BAR WASH SYSTEM: 1. 50/50 Brass "Vee Jet" nozzles, 1½" spray bars. 2. Brass individual gate valves for each spray bars. 3. Water manifold with inlet pipe and flange. 4. Rated at 640 GPM at 40 psi. 18" WALKWAYS BOTH SIDES OF SCREEN, BACK 48" PLATFORM, SKYWALK FLOOR, TOE BOARDS, 42" TUBE STEEL HANDRAILS, AND ACCESS LADDER. (3) AR LINED DISCHARGE CHUTES WITH EASY ACCESS TO PRODUCT CONVEYOR: 1. Optional blending capabilities offered. TANDEM AXLE CARRIER 16" WF BEAMS: 1. Hutch 9700 series suspension. 2. 22,500# Standard forge axles. 3. 11:00x22.5 Tires, ten hole piloted hub wheels. 4. Air brakes, LED brake lights, LED marker lights, reflector tape, and mud flaps. SELF CLOSING SAFETY GATE AT LADDER OPENING. SAFETY GUARDS, SANDBLASTED CHASSIS, RUST INHIBITOR PRIMER, AND TWO FINISH COATS OF PAINT INCLUDED. PRODUCT CHUTE BLENDING ON 1ST TO 2ND AND 2ND TO 3RD PRODUCTS: FEED SLURRY BOX WITH SPRAY HEADS: ADDITIONAL OPTIONS AVAILABLE: HYDRAULIC RAISE AND LOWER OF SCREEN AND SLURRY BOX: 1. 12 Volt system. BINKLEY LANDING GEAR JACKS: 2 LEG 4 LEG PLUMBING AND FITTINGS FOR "RISING CURRENT" INTO SANDSCREWNäytä lisää

DSW Equipment (2023) Ltd.

3750 43 Avenue T4V 3S8 Camrose Alberta Kanada
