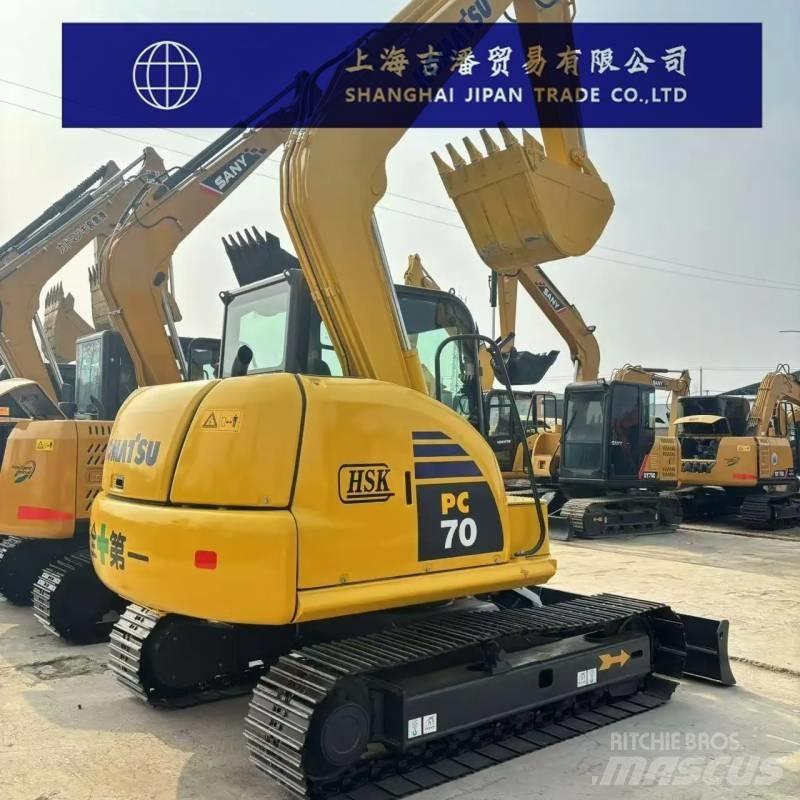

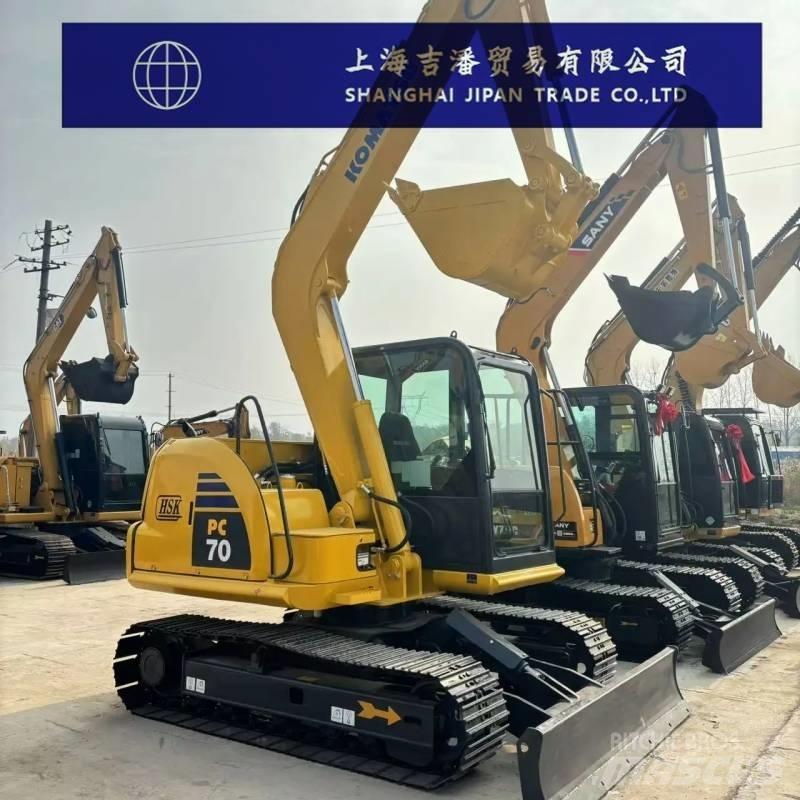

Komatsu PC 70
Veroton hinta
Tulosta
INFO
Tuoteryhmä
Telakaivukoneet
Merkki / malli
Komatsu PC 70
Vuosimalli
2024
Käyttötunnit
500 h
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
B702C78E
HINTA
Toisessa valuutassa
LISÄTIEDOT
Varastonumero
1
Käyttövoima
Diesel
Valmistenumero
1
Ed. omistajien lkm.
1
Viim. katsastus
2025-06-26
Alustan kunto
Good Condition
Moottori
Original
Kokonaispaino
6 500 kg
Moottorin teho
48,5 kW (65,9 hv)
Moottorin valmistaja.
Original
Rek. no
1
Päästöluokka
Stage V
Kauhan kapasiteetti
0,39 m3
Telojen leveys
450 mm
Lisähydrauliikan tuotto
172 l/min
Huippunopeus
5,50 km/h
Kuljetusmitat (PxLxK)
6080 x 2225 x 2620 mm
Alkuperäinen väri
Original Yellow
Kauhavarren / varren pituus
1 650 mm
Kunto tiedot/Takuu
1 Year
Valmistusmaa
Japani
Toimitusehdot
FCA, FOB, CIF, EXW
Sertifikaatit
EPA, CE
Lisävarusteet
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Muut varusteet
Oksavaijeri
Lisähydrauliikka
Niittokauha
Moottorin esisuodatin
Seulakauha
Akun erotin
Varoitusmajakka
Diesel lämmitin
Vipuohjaus
Kuokkakauha
Kaapeliojakauha
Tasoitus-/luiskakauha
Kauhanpyöritin
Lisätietoja
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)7
The overall working weight of the machine (kg) is 6500
Bucket capacity (m³) : 0.32-0.39
Boom length (mm) : 3710
The length of the bucket pole (mm) is 1650
Performance
Rotational speed (rpm)11
Walking speed (km/h) : 4.5/2.8
Grounding specific pressure (Kpa)30.2
The bucket digging force (kN) is 54.8
The digging force of the boom (kN) is 38.2
Maximum traction force (kN)56.4
Power system
Engine model: Komatsu SAA4D95LE-5
Rated power (kw/rpm)48.5/1950
Displacement (L) : 3.26
Number of cylinders (4)
Bore × stroke (mm)95*115
The cooling method is water cooling
The working mode is turbocharged and post-cooled
Hydraulic system
The main pump type is a variable piston pump
The maximum flow rate of the main pump (l/min) is 172
Pilot oil circuit (MPa)2.9
Working hydraulic oil circuit (Mpa)24.5
Walking hydraulic circuit (Mpa)24.5
Rotary hydraulic circuit (Mpa)21.1
Boom cylinder - Number × cylinder bore × stroke (mm)1-115*840
Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-100*865
Bucket cylinder - Number × cylinder diameter × stroke (mm)1-90*710
Oil capacity
Fuel tank (L)130
Hydraulic oil tank (L)95
Engine oil change rate (L)12.5
Main body size
Total transportation length (mm) : 6080
Total transportation width (mm)2225
Total transportation height (mm) : 2620
Track grounding length (mm)2130
The total length of the track (mm) is 2765
Track plate width (mm)450
The total width of the track (mm) is 2150
Track gauge (mm)1700
Minimum ground clearance (mm)350
Counterweight ground clearance (mm)750
The rear end rotation radius (mm) is 1750
Number of sprocket rollers (single side) (pieces)1
Number of track plates (single side) (pieces)38
Number of supporting wheels (single side) (pieces)5
Scope of work
Maximum excavation radius (mm) : 6360
The maximum excavation radius (mm) of the shutdown surface is 6220
Maximum excavation depth (mm) : 4100
Maximum excavation height (mm) : 7150
Maximum unloading height (mm) : 5015
Maximum vertical excavation depth (mm) : 3505
