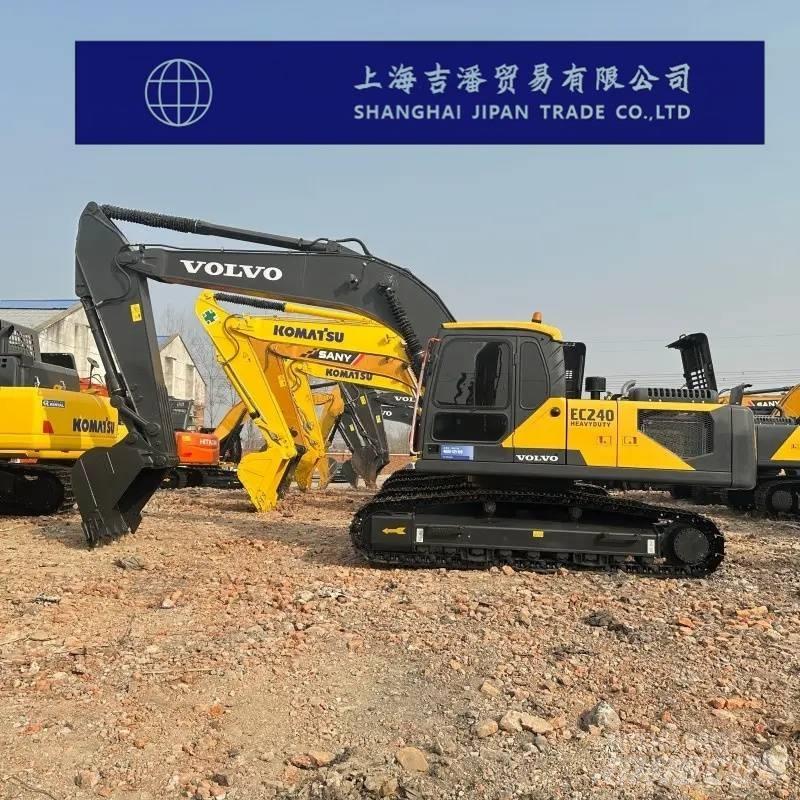

Volvo EC 240
Veroton hinta
Tulosta
INFO
Tuoteryhmä
Telakaivukoneet
Merkki / malli
Volvo EC 240
Vuosimalli
2024
Käyttötunnit
550 h
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
A3E0A4F8
HINTA
Toisessa valuutassa
LISÄTIEDOT
Varastonumero
1
Käyttövoima
Diesel
Valmistenumero
1
Ed. omistajien lkm.
1
Viim. katsastus
2025-06-27
Alustan kunto
Good Condition
Moottori
Original
Kokonaispaino
24 300 kg
Moottorin teho
134 kW (182 hv)
Moottorin valmistaja.
Original
Rek. no
1
Päästöluokka
Stage V
Kauhan kapasiteetti
1,05 m3
Telojen leveys
600 mm
Lisähydrauliikan tuotto
460 l/min
Huippunopeus
5,50 km/h
Kuljetusmitat (PxLxK)
10020 x 2990 x 3040 mm
Alkuperäinen väri
Original
Kauhavarren / varren pituus
2 970 mm
Kunto tiedot/Takuu
1 Year
Valmistusmaa
Etelä-Korea
Toimitusehdot
FCA, FOB, CIF, EXW
Sertifikaatit
EPA, CE
Lisävarusteet
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Muut varusteet
Oksavaijeri
Ilmastointilaite
Lisähydrauliikka
Moottorin esisuodatin
Seulakauha
Akun erotin
Varoitusmajakka
Diesel lämmitin
Vipuohjaus
Kuokkakauha
Kaapeliojakauha
Lisätietoja
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
The working weight of the entire machine (kg) is 24,300
Bucket capacity (m³) : 1.05-1.98
Boom length (mm) : 6000
The length of the bucket pole (mm) is 2970
Tonnage (tons) : 24
Bucket backhoe
Joint venture/import by manufacturers
Power, traditional power
Performance
Rotational speed (rpm)11.4
Walking speed (km/h)3 2/5.5
Climbing ability (%)70
Grounding specific pressure (Kpa)50
Bucket digging force (kN)160.8 (standard mode) /175.5 (additional force mode)
Boom digging force (kN)111.1 (standard mode) /121.6 (additional force mode)
Power system
Engine model: Volvo D7D
Rated power (kw/rpm)134/2000
Displacement (L)7.1
Number of cylinders (units)6
Bore × stroke (mm) : 108×130
The cooling method is water cooling
Maximum torque in working mode: 750N.m/1400rpm, turbocharged

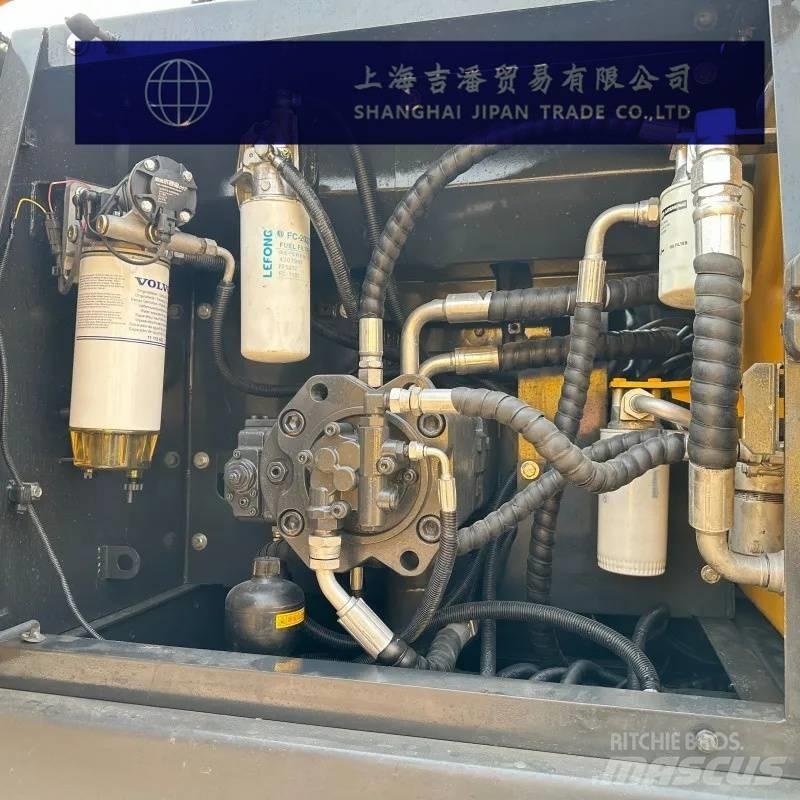

Hydraulic system
The main pump type is variable axial piston pump ×2+ gear pump
The type of walking hydraulic motor is a variable axial piston motor
Rotary hydraulic motor type: Axial piston hydraulic motor
The maximum flow rate of the main pump (l/min) is 230×2+20
Working hydraulic oil circuit (Mpa)31.4/34.3
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)26.5
Control hydraulic Circuit (Mpa)3.9
Boom cylinder - Number × cylinder bore × stroke (mm)2-135×1345
Bucket rod cylinder - Number × cylinder bore × stroke (mm)1-140×1665
Bucket cylinder - Number × cylinder diameter × stroke (mm)1-130×1150
Oil capacity
Fuel tank (L)380
Hydraulic oil tank (L)190
Hydraulic System (L)320
Engine oil change rate (L) : 32
Coolant (L)44
Main body size
Total transportation length (mm)10020
Total transportation width (mm) : 2990
Total transportation height (mm) : 3040
The total height of the cab (mm) is 2990
Track grounding length (mm)3660
The total length of the track (mm) is 4460
Track plate width (mm)600
The total width of the track (mm) is 2990
Track gauge (mm)2390
Minimum ground clearance (mm) : 470
The ground clearance of counterweights (mm) is 1080
The minimum turning radius (mm) of the front-end working device is 3890
Rear end rotation radius (mm)2940
Scope of work
Maximum excavation radius (mm) : 10260
The maximum excavation radius (mm) of the shutdown surface is 10080
Maximum excavation depth (mm) : 6980
Maximum excavation height (mm)9690
Maximum unloading height (mm) : 6800
The maximum vertical excavation depth (mm) is 5970
The maximum effective excavation depth (mm) is 6740
