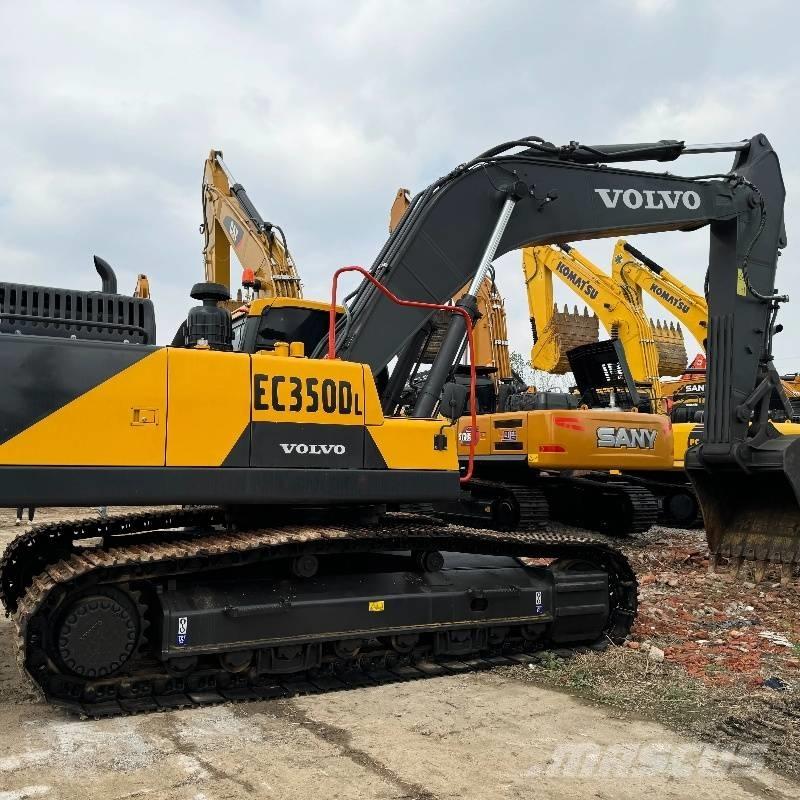

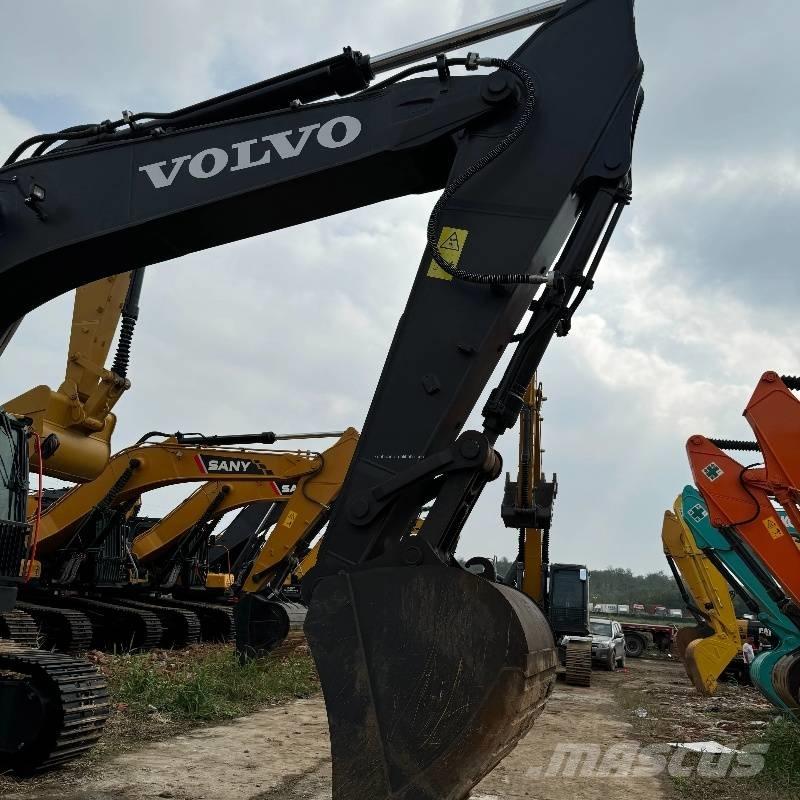

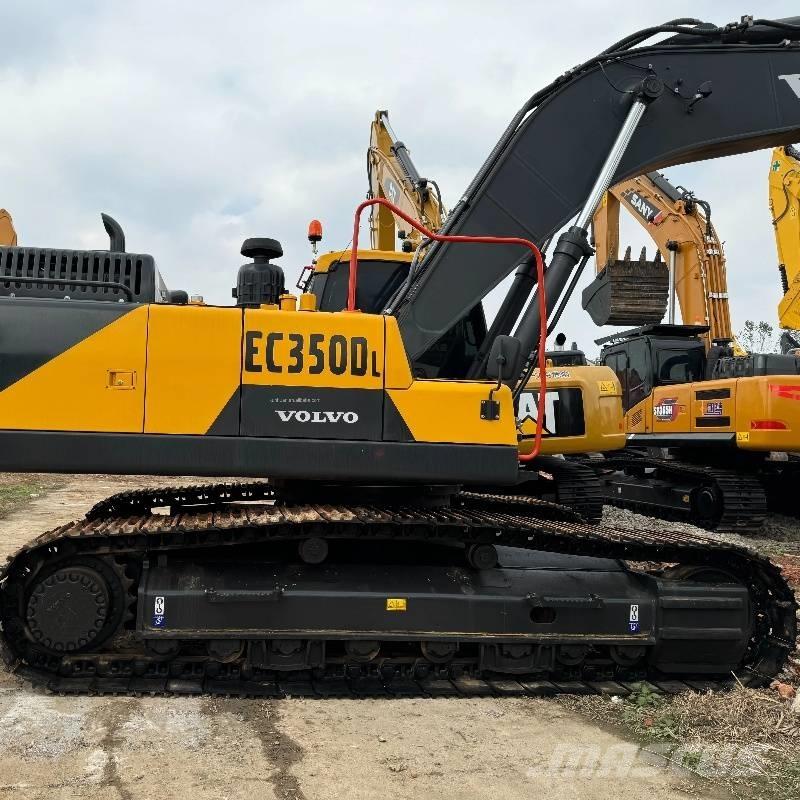

Volvo EC 350 D
Veroton hinta
Tulosta
INFO
Tuoteryhmä
Telakaivukoneet
Merkki / malli
Volvo EC 350 D
Vuosimalli
2024
Käyttötunnit
890 h
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
9B77F484
HINTA
Toisessa valuutassa
LISÄTIEDOT
Varastonumero
1
Käyttövoima
Diesel
Valmistenumero
1
Ed. omistajien lkm.
1
Viim. katsastus
2025-08-25
Alustan kunto
good condition
Moottori
Original
Kokonaispaino
38 700 kg
Moottorin teho
197 kW (268 hv)
Moottorin valmistaja.
Volvo
Rek. no
1
Päästöluokka
Stage V
Kauhan kapasiteetti
2,53 m3
Telojen leveys
600 mm
Huippunopeus
5,10 km/h
Kuljetusmitat (PxLxK)
11190 x 3190 x 3230 mm
Alkuperäinen väri
Yellow&Black
Kauhavarren / varren pituus
3 300 mm
Kunto tiedot/Takuu
1 year
Valmistusmaa
Yhdysvallat
Toimitusehdot
FCA, FOB, CIF, EXW
Sertifikaatit
EPA, CE
Lisävarusteet
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 17756597429
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Muut varusteet
Turvaventtiili puomin hydraulisten letkujen repeämän varalle
Turvaventtiili kauhavarren hydraulisten letkujen repeämän varalle
Ilmastointilaite
Moottorin esisuodatin
Seulakauha
Varoitusmajakka
Lisävarusteet
Vipuohjaus
Kuokkakauha
Lisätietoja
Volvo EC350D Excavator Parameter Configuration
specification
Power: Traditional power
Joint ventures/imports
Bucket backhoe
Tonnage (tons) 35
The working weight of the whole machine (kg) is 34300-38700
Bucket capacity (m³) 1.0-2.53
Country of origin: South Korea
performance
Rotation speed (rpm) 10.3
Slewing torque (Nm) 126
Travel speed (km/h) 3.3/5.1
Climbing ability (%) 35°
Maximum traction (kN) 261
dynamical system
Engine model Volvo D8K
Rated power (kw/rpm) 197/1800
Maximum torque (N.m) 1340
Displacement (L) 7.8
Bore × stroke (mm) 110×138
Hydraulic system
The maximum flow rate of the main pump (l/min) is 2×288
Working hydraulic oil circuit (Mpa) 33.3/36.3
Traveling Hydraulic Circuit (Mpa) 33.3
Slewing hydraulic circuit (Mpa) 27.9
Control Hydraulic Circuit (Mpa) 3.9
Boom cylinder - number × bore × stroke (mm) 2×150×1530
Bucket rod cylinder - number × bore × stroke (mm) 1×170×1700
Oil capacity
Fuel tank (L) 580
Hydraulic Tank (L) 215
Hydraulic System (L) 465
Engine oil change volume (L) 32
Coolant (L) 41
Body size
Total length of transport (mm) 11190
Total width of transport (mm) 3190
Total height of transport (mm) 3230
Cab total height (mm) 3030
Mount width (mm) 2990
Track grounding length (mm) 3700
Total track length (mm) 4630
Track shoe width (mm) 600
Track gauge (mm) 2590
Minimum ground clearance (mm) 500
Counterweight ground clearance (mm) 1180
Rear end slewing radius (mm) 4120
Scope of work
Maximum digging radius (mm) 11110
The maximum excavation radius of the stopping surface (mm) is 10900
Maximum digging depth (mm) 7480
Maximum digging height (mm) 10330
Maximum unloading height (mm) 7250
Maximum vertical digging depth (mm) 5890
