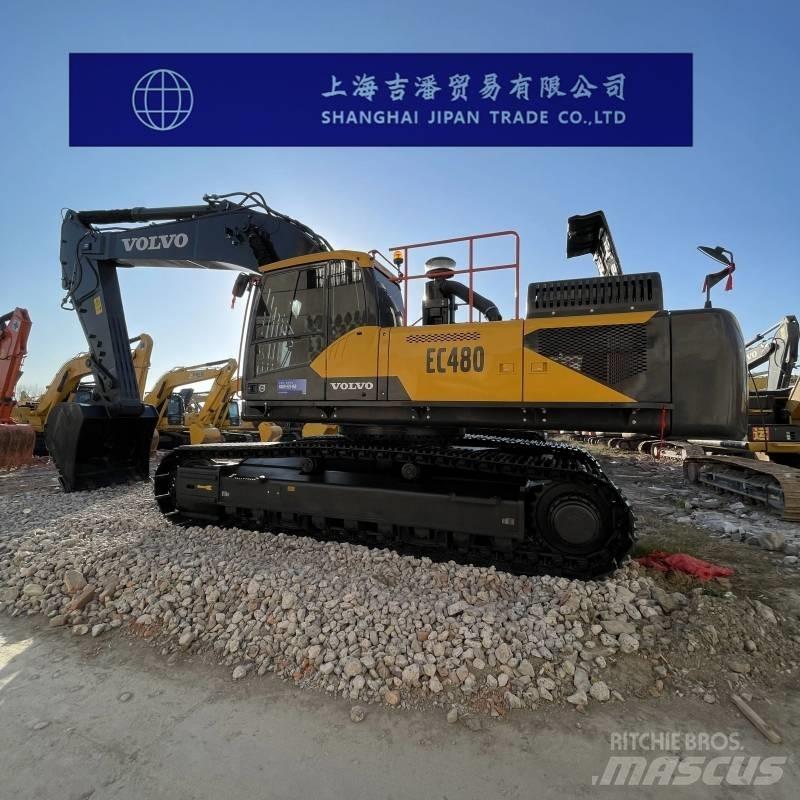

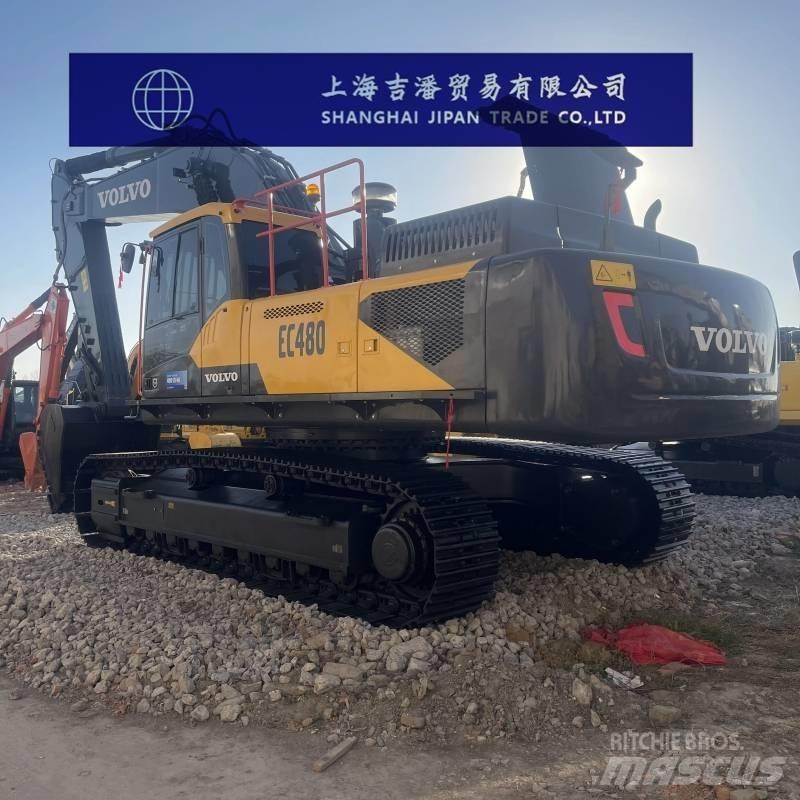

Volvo EC 480
Veroton hinta
Tulosta
INFO
Tuoteryhmä
Telakaivukoneet
Merkki / malli
Volvo EC 480
Vuosimalli
2024
Käyttötunnit
600 h
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
9ECC9870
HINTA
Toisessa valuutassa
LISÄTIEDOT
Varastonumero
1
Käyttövoima
Diesel
Valmistenumero
1
Ed. omistajien lkm.
1
Viim. katsastus
2025-06-27
Alustan kunto
Good Condition
Moottori
Original
Kokonaispaino
53 100 kg
Moottorin teho
270 kW (367 hv)
Moottorin valmistaja.
Original
Rek. no
1
Päästöluokka
Stage V
Kauhan kapasiteetti
3,80 m3
Telojen leveys
600 mm
Lisähydrauliikan tuotto
716 l/min
Huippunopeus
5,10 km/h
Kuljetusmitat (PxLxK)
11070 x 3340 x 3350 mm
Alkuperäinen väri
Original
Kauhavarren / varren pituus
3 200 mm
Kunto tiedot/Takuu
1 Year
Valmistusmaa
Etelä-Korea
Toimitusehdot
FCA, FOB, CIF, EXW
Sertifikaatit
EPA, CE
Lisävarusteet
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Muut varusteet
Turvaventtiili puomin hydraulisten letkujen repeämän varalle
Turvaventtiili kauhavarren hydraulisten letkujen repeämän varalle
Oksavaijeri
Ilmastointilaite
Lisähydrauliikka
Moottorin esisuodatin
Seulakauha
Akun erotin
Varoitusmajakka
Diesel lämmitin
Vipuohjaus
Kuokkakauha
Kaapeliojakauha
Tasoitus-/luiskakauha
Ojakauha
Lisätietoja
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons) : 48
The working weight of the whole machine (kg) is 47,300 to 53,100
Bucket capacity (m³) : 1.77-3.8
Performance
Rotational speed (rpm)8.8
Rotational torque (Nm)166.3
Walking speed (km/h) : 3.1/5.1
Maximum traction force (kN)330
Power system
Engine model D13F
Rated power (kw/rpm)270/1800
Maximum torque (N.m) 1800/1400
Displacement (L)12.8
Number of cylinders (units)6
Bore × stroke (mm) : 131×158
Hydraulic system
The maximum flow rate of the main pump (l/min) is 2 x 358
Pilot pump flow rate (L/min)1 x 32
Pilot oil circuit (MPa)3.9
Walking hydraulic circuit (Mpa)32.4
Rotary hydraulic circuit (Mpa)25.8
Boom cylinder - Number × Cylinder bore × Stroke (mm)2*165 X 1,590
Bucket rod cylinder - Number × Cylinder diameter × Stroke (mm)1*190 x 1,850
Bucket cylinder - Number × Cylinder diameter × Stroke (mm)1*165 x 1,330
Oil capacity
Fuel tank (L)685
Hydraulic oil tank (L)270
Hydraulic System (L)520
Engine oil change rate (L)42
Coolant (L)60
Main body size
Total transportation length (mm)11630
Total transportation width (mm) : 3340
The total height of the cab (mm) is 3257
The width of the vehicle (mm) is 2990
Track grounding length (mm)4370
The total length of the track (mm) is 5370
Track plate width (mm)600
Track gauge (mm)2740
Counterweight ground clearance (mm)1275
Minimum ground clearance (mm)550
The rear end rotation radius (mm) is 3880
Number of sprocket rollers (single side) (pieces)2
Number of track plates (single side) (pieces)52
Number of supporting wheels (single side) (pieces)9
Scope of work
Maximum excavation radius (mm) : 10,930
The maximum excavation radius (mm) of the shutdown surface is 10680
Maximum excavation depth (mm) : 6580
Maximum excavation height (mm) : 10,600
Maximum unloading height (mm) : 6970
The maximum vertical excavation depth (mm) is 5990
