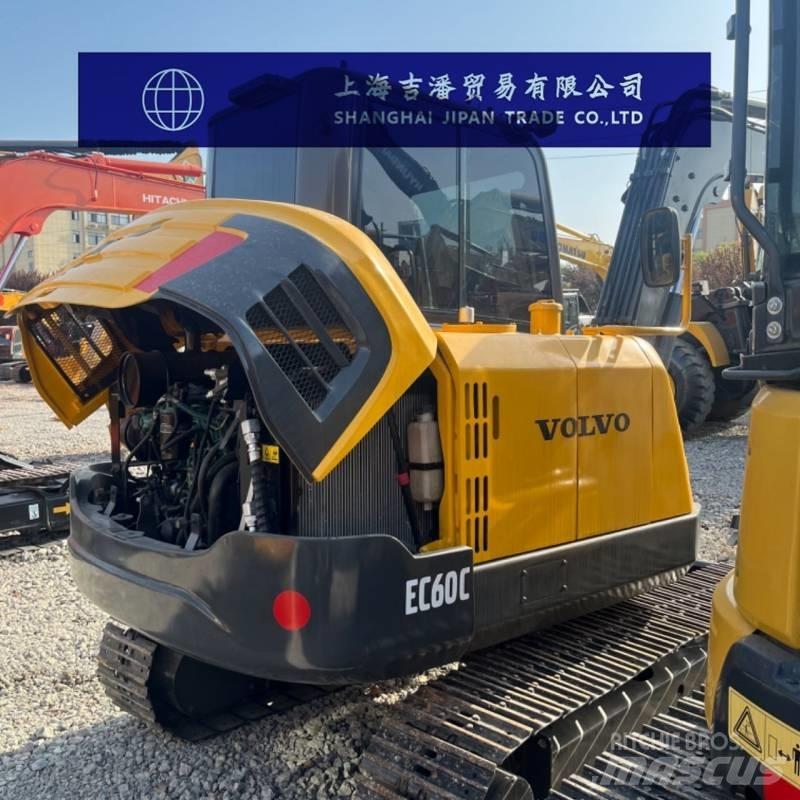

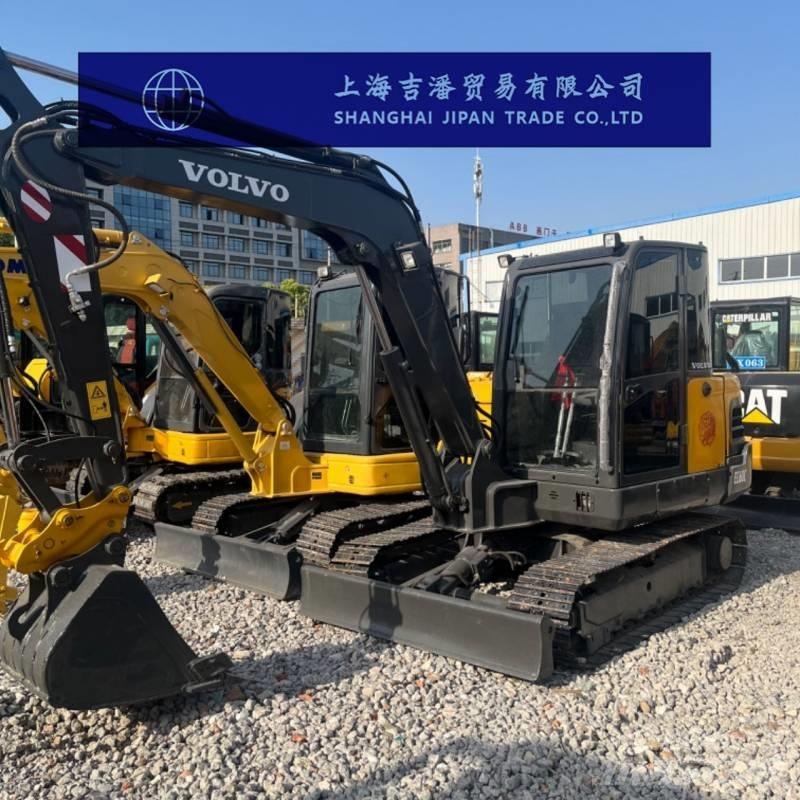

Volvo EC 60 C
Veroton hinta
Tulosta
INFO
Tuoteryhmä
Telakaivukoneet
Merkki / malli
Volvo EC 60 C
Vuosimalli
2024
Käyttötunnit
500 h
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
A16F5A3C
HINTA
Toisessa valuutassa
LISÄTIEDOT
Varastonumero
1
Käyttövoima
Diesel
Valmistenumero
1
Ed. omistajien lkm.
1
Viim. katsastus
2025-06-26
Alustan kunto
Good Condition
Moottori
Original
Kokonaispaino
5 820 kg
Moottorin teho
39,7 kW (54,0 hv)
Moottorin valmistaja.
Original
Rek. no
1
Päästöluokka
Stage V
Kauhan kapasiteetti
0,23 m3
Telojen leveys
400 mm
Lisähydrauliikan tuotto
58 l/min
Huippunopeus
4,50 km/h
Kuljetusmitat (PxLxK)
5872 x 1920 x 2563 mm
Alkuperäinen väri
Original
Kauhavarren / varren pituus
1 600 mm
Kunto tiedot/Takuu
1 Year
Valmistusmaa
Etelä-Korea
Toimitusehdot
FCA, FOB, CIF, EXW
Sertifikaatit
EPA, CE
Lisävarusteet
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Muut varusteet
Oksavaijeri
Ilmastointilaite
Lisähydrauliikka
Moottorin esisuodatin
Seulakauha
Akun erotin
Varoitusmajakka
Diesel lämmitin
Vipuohjaus
Kuokkakauha
Kaapeliojakauha
Kauhanpyöritin
Lisätietoja
Volvo EC60C excavator parameter configuration
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)6
The overall working weight of the machine (kg) is 5820
Bucket capacity (m³)0.23
Boom length (mm)3000
The length of the bucket pole (mm) is 1600
Origin: South Korea
Performance
Rotational speed (rpm)8.8
Walking speed (km/h) : 4.5/2.4
Bucket digging force (kN)36.6
The digging force of the boom (kN) is 26.8
Maximum traction force (kN)44.1
Power system
Engine model D3.4D
Rated power (kw/rpm)38.2-39.7/2200
Maximum torque (N.m)209/1650
Displacement (L) : 3.319
Number of cylinders (4)
Bore × stroke (mm)94×110
The working form of the 4-cylinder diesel engine complies with the EPA-2 standard and the EU IIIA standard.
Hydraulic system
The main pump type is a variable double-acting plunger pump
The maximum flow rate of the main pump (l/min) is 2 x 57.8
The main overflow set pressure (Mpa) is 21.6
Oil capacity
Fuel tank (L)110
Hydraulic oil tank (L)84
Hydraulic System (L)134
Engine oil change rate (L)11.5
Coolant (L)16
Main body size
Total transportation length (mm) : 5872
Total transportation width (mm) : 1920
Total transportation height (mm) : 2563
The total height of the cab (mm) is 2563
Track grounding length (mm)1950
The total length of the track (mm) is 2500
Track plate width (mm)400
Total track width (mm) : 1920
Minimum ground clearance (mm)380
Counterweight ground clearance (mm)690
The minimum turning radius (mm) of the front-end working device is 2480
The rear end rotation radius (mm) is 1650
Scope of work
Maximum excavation radius (mm) : 6100
The maximum excavation radius (mm) of the shutdown surface is 5960
The maximum excavation depth (mm) is 3750
Maximum excavation height (mm) : 5680
Maximum unloading height (mm) : 4140
The maximum vertical excavation depth (mm) is 3750
The width × height (mm) of the push board is 1920×350
Bulldozer lift or push depth (mm)380/508
