Shantui SD10YE

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images1

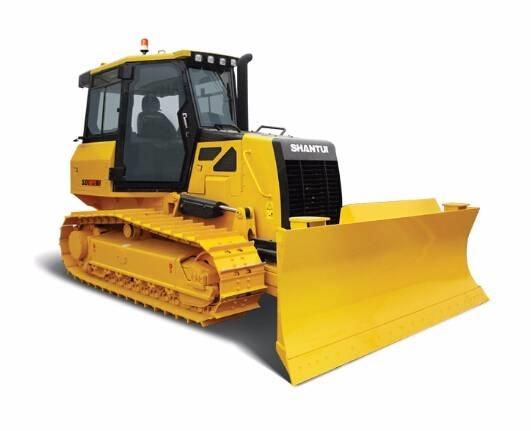

Shantui SD10YE Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD10YE
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
Jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
C5F78DED

LISÄTIEDOT

Varastonumero
SD10YE
Viim. katsastus
yes
Huoltosopimus
Kyllä
Työleveys
290 cm
Valmistenumero
SD10YE
Kokonaispaino
9 200 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Ohjaamotyyppi
Umpihytti
Päästöluokka
Stage IIIB
Moottori
Cummins QSB4.5
Moottorin teho
74 kW (101 hv)
Telojen leveys
460 mm
Vaihteisto
Shantui
Kuljetusmitat (PxLxK)
4400 x 2900 x 2800 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100012
Toimitusehdot
FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Single shank ripper
Näytä lisää
Lisätietoja
Technical Features ●The air-air inter-cooled, electronically controlled, and turbocharged diesel engine features outstanding power performance, economy, and durability, with the emission conforming to EPA Tier 3/StageIIIA standard. ●The dual-circuit electronically controlled static pressure drive system automatically adjusts the power output and traveling speed to adapt to the load variation. The tracks on two sides are driven independently to ensure full power output during steering and realize reverse rotation of tracks on two sides. It features completely “continuously variable” speed change to provide best speed for different working conditions. ●The palm commanded electronic control system features accurate, flexible, simple, and comfortable operations, with the left joystick controlling the traveling direction and speed of the machine and the right joystick controlling various motions of the working device. ●High strength chassis structure meets the demands of heavy-load working condition and features high rigidity and durability. ●The integrated intelligent thermal management system realizes the best temperature control and the noise reduction and energy-saving. ●The intelligent service system incorporates automatic malfunction detection and automatic diagnosis functions and provides remote technical support. ●The ROPS/FOPS shock-absorbing cab, the air suspension seat, and the high capacity heating and air conditioning system provide a safe, comfortable, and spacious operating environment , with broad visual field. ●The modular wheel reducer system features high strength, long service life, and easy maintenances. ●The high capacity, high strength, multi-functional, and adjustable power angle blade is suitable for fine or heavy-load operations, including excavating, backfilling,modeling, and leveling, featuring high rigidity and durability and high production efficiency. Performance Parameters Length × width × height (mm) (excluding ripper) 4478×2860×2825 4478×3200×2825 Operating weight(t)(excluding ripper) 9.2 9.5 Engine model QSB4.5 Net power/rated speed (kW/rpm) 80/2200 Ground pressure(Mpa) 0.04 0.03 Blade type U-blade Blade capacity(m3) 2.38 2.66 Applicable Working Conditions Fine and heavy-load operations (such as digging, backfill, modeling, and leveling) of earthwork materials as well as rescue and lumbering functions.Näytä lisää
