Shantui SD16Plus

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images1

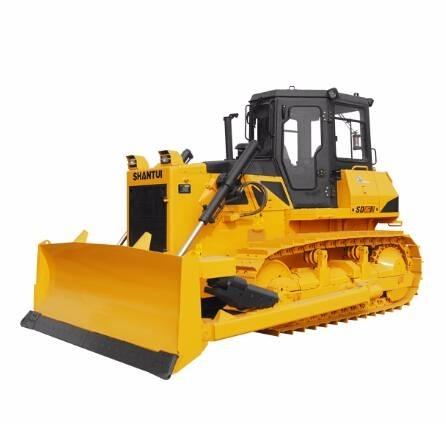

Shantui SD16Plus Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD16Plus
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
Jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
475DCEF8

LISÄTIEDOT

Varastonumero
SD16Plus
Viim. katsastus
0
Huoltosopimus
Kyllä
Työleveys
340 cm
Valmistenumero
SD16Plus
Kokonaispaino
17 000 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Päästöluokka
Stage II
Ohjaamotyyppi
Umpihytti
Moottori
Shangchai SC11CB184G2B1
Moottorin teho
118 kW (161 hv)
Telojen leveys
510 mm
Vaihteisto
Shantui
Kuljetusmitat (PxLxK)
5140 x 3400 x 3030 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100012
Toimitusehdot
FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Multi shank ripper
Näytä lisää
Lisätietoja
Technical Features ●Weichai WD10 engine features the advantages of strong power, high combustion efficiency, and easy maintenances and conformed to China-II emission regulation. ●The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure and splash lubrication feature high durability and high operating efficiency. ●The closed system is adopted to maintain the water tank pressure at specific value and the forced air supply can enhance the cooling effect. ●The harnesses of whole machine are protected by seamless corrugated tubes to improve the reliability of electric harnesses. ●The integrally injection molded instrument panel integrates the A/C, electric devices, and instrument box, featuring beautiful appearance and high grade. ●The optimized working lamp arrangement improves the lighting performance of vehicle. ●The reversing alarm and the working warning lamp are added to provide the safety warnings during working. ●The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame. Hydraulic system: ●The external working valves ease the daily maintenances and realize better maintainability for the valves. ? ●The PPC pilot controls achieve better labor-saving and convenient operations. ●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ●This product features powerful traction force and durability. The rigid traveling system transmits the working load and impact load onto the main frame to guarantee the stability of machine under complicated working conditions. ●The new hexahedron cab features enlarged interior space and broader visual field. ●The mounting surface and the sealing surface of the cab are separated to achieve better sealing performance. ●Floor Similar Products SD42-3 Standard Bulldozer SD42-3 Standard Bulldozer 123 Performance Parameters Length × width × height (mm) (excluding ripper) 5140×3388×3024 Operating weight(t) (excluding ripper) 17 Engine model SC11CB184G2B1 Net power/rated speed (kW/rpm) 120/1850 Ground pressure(Mpa) 0.067 Blade type Angle blade Straight tilting blade U blade Blade capacity(m3) 4.5 for straight tilting blade 4.3for angle blade 5 for U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Näytä lisää

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kiina
