Shantui SD20-5

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images1

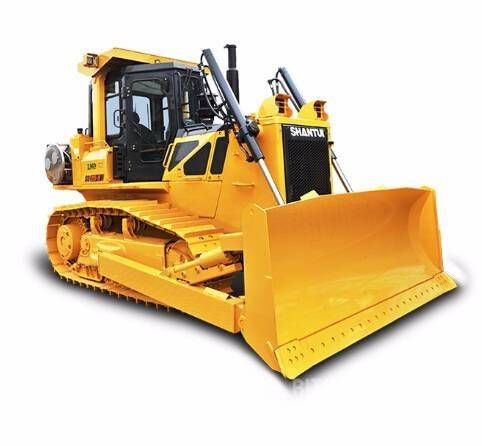

Shantui SD20-5 Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD20-5
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
Jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
96691108

LISÄTIEDOT

Varastonumero
SD20-5
Viim. katsastus
yes
Huoltosopimus
Kyllä
Työleveys
437 cm
Valmistenumero
SD20-5
Kokonaispaino
20 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Ohjaamotyyppi
Umpihytti
Päästöluokka
Stage II
Moottori
Weichai WD12G220E23
Moottorin teho
147 kW (200 hv)
Telojen leveys
610 mm
Vaihteisto
Shantui
Kuljetusmitat (PxLxK)
6700 x 4370 x 3300 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100012
Toimitusehdot
FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Single shank ripper
Näytä lisää
Lisätietoja
Technical Features ● It’s equipped with Weichai WP12G220E33NG engine with power output at 200ps to realize low carbon emission and high environmental-friendliness by reducing the harmful gas emission by >90% and effectively prolong the service life of engine due to sufficient combustion of LNG without carbon deposit, featuring low operating cost and significant comprehensive benefits. ● The rear four-point shock-absorbing installation is adopted for the gas system. The multi-layer insulated high vacuum tank body features high safety, with the capacity at 500L and the maximum filling capacity at 196KG, which is enough for 12h continuous working. ● The installed temperature controlled system features excellent energy-saving and consumption reduction and high economy and environmental-friendliness. ● The independently developed control program implements real-time monitoring on the engine and temperature controlled fan. ● The bogie adopts central hinge type suspension installation, without splayed beam, to reduce the impact on the drive system. ● The drive system adopts modular design and double shock-absorbing installation to ease the maintenances and improve the reliability and comfort of the whole machine. ● The high pressure low flow hydraulic system is adopted to reduce the volume of hydraulic units and achieve compact and reasonable structural layout. ● The externally installed operating valves ensure easier checking and maintenances. ● The hydraulic pilot control is adopted for the working device. ● The mechanical operations by single joystick are adopted for the gearshift and the steering. ● It features comfortable, labor-saving, accurate, flexible operations, rapid response, and improved efficiency. ● The structure of high strength special-shaped tubes, labyrinth seals, and four-point shock-absorbing installation feature low noise and vibration and high comfort and safety. ● SD20-5LNG is equipped with standard straight tilting blade and optional U-blade to provide operation possibility for the regions of higher environmental-friendly requirements. Performance Parameters Length × width × height (mm) (excluding ripper) 5450×3450×3255 Operating weight(t) (excluding ripper) 19.9 Engine model WP12G220E33NG Net power/rated speed (kW/rpm) 149/1200~1600 Ground pressure(Mpa) 0.065 Blade type U-blade Blade capacity(m3) 4.5 Applicable Working Conditions Applicable for the concentrated freight operations in material distribution centers (such as ports and coal yards) and for the operations in the sites with convenient gas refilling installation.Näytä lisää
