Shantui SD22Plus

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images1

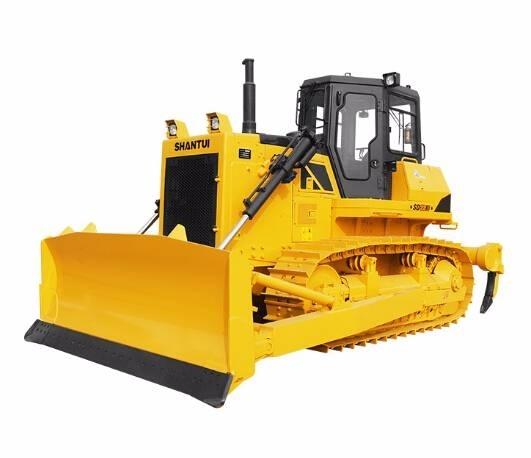

Shantui SD22Plus Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD22Plus
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
Jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
D7280954

LISÄTIEDOT

Varastonumero
SD22Plus
Viim. katsastus
yes
Huoltosopimus
Kyllä
Työleveys
380 cm
Valmistenumero
SD22Plus
Kokonaispaino
23 450 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Ohjaamotyyppi
Umpihytti
Päästöluokka
Stage II
Moottori
Cummin NT855-C280S10
Moottorin teho
175 kW (238 hv)
Telojen leveys
560 mm
Vaihteisto
Shantui
Kuljetusmitat (PxLxK)
5750 x 3730 x 3400 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100011
Toimitusehdot
FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Multi shank ripper
Näytä lisää
Lisätietoja
Technical Features ●Cummins NT855-C280 engine features strong power and high efficiency and energy-saving. ●The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability. ●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. ●The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. ●The optimized working lamp layout achieves a good lighting effect. ●The harnesses adopt the Schlemmer seamless corrugated tubes to promote the protection grade to IP67 (sealed and protected against dusts and short-time water immersion). ●The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame. ●The external working valves ease the daily maintenances and realize better maintainability. ●The PPC pilot control features low operating force and precise controls. ●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ●The track rollers keep close contact with tracks to increase the ground area of tracks and improve the traction force of the machine. ●The air suspension traveling system adapts to various complicated road conditions, featuring high shock-absorbing efficiency and higher comfort and reliability. ●The hexahedral cab features beautiful modeling and broad visual field. ●The internal shock-absorbing device and the labyrinth sealing structure reduce the vibration and noise and improve the operation comfort. ? ●The high strength cab in structure of special-shaped steel tubes features the falling object protection function to effectively protect the operator's safety. Performance Parameters Length × width × height (mm) (excluding ripper) 5750×3725×3395 Operating weight(t) (excluding ripper) 23.45 Engine model WD12G240E206/NT855-C280S10 Net power/rated speed (kW/rpm) 162/1800 Ground pressure(Mpa) 0.077 Blade type Straight tilting blade Angle blade U blade Semi-U blade Blade capacity(m3) 6.4 for straight tilting blade 4.7 for angle blade 7.5 for U blade 7.0 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Näytä lisää
