Shantui SD23

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images3

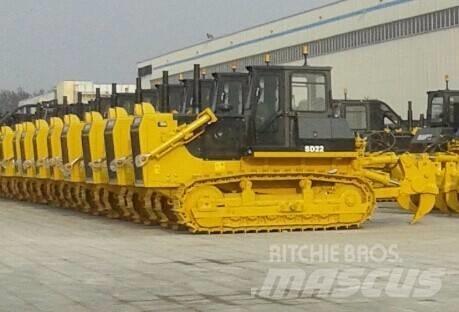

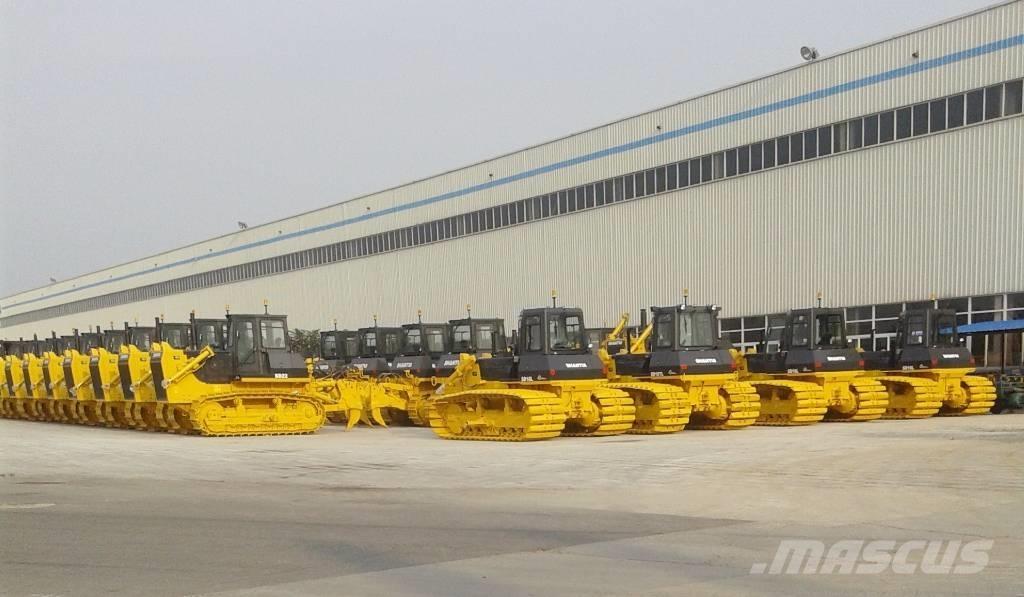

Shantui SD23 Telaketjupuskutraktorit
Shantui SD23 Telaketjupuskutraktorit
Shantui SD23 Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD23
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
AE5844F7

LISÄTIEDOT

Varastonumero
SD23
Viim. katsastus
yes
Huoltosopimus
Kyllä
Työleveys
373 cm
Valmistenumero
SD23
Kokonaispaino
24 600 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Ohjaamotyyppi
Umpihytti
Päästöluokka
Stage II
Moottori
Cummins NT855-C280S10
Moottorin teho
175 kW (238 hv)
Telojen leveys
660 mm
Vaihteisto
shantui
Kuljetusmitat (PxLxK)
5870 x 3730 x 3360 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100010
Toimitusehdot
FCA, CPT, FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Lisävarusteet
Single ripper/Three-shank ripper
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Single shank ripper
Näytä lisää
Lisätietoja
Technical Features ●The high power Cummins NT855-C280S10 with high-efficiency turbocharger is equipped to expand the high-efficiency working zone of engine and achieve lower fuel consumption. ●The mature and stable hydraulic torque converter, the high reliability power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability. ●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. ●The full box-type main frame features high carrying capacity against impact load and bending moment, in which the application of high performance materials and high strength castings makes the main frame stronger and the high quality welds guarantee the life cycle of the main frame. ●The advanced fuel-saving hydraulic circuit features low energy consumption and convenient maintenances, with the working pressure up to 19.1MPa. ●The integrally injection molded instrument panel features beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. ●The chassis system features powerful traction and durability and high adaptability and stability under various complicated working conditions. ●In accordance with ergonomic principles, the gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver with adoption of servo control system, featuring light and flexible controls. ●The standard straight tilting blade features powerful cutting force and durability, with optional U-blade at the user’s choice. The single-shank ripper features adjustable penetrating angle and powerful penetrating force, with optional three-shank ripper and traction frame at the user’s choice. Performance Parameters Length × width × height (mm) (excluding ripper) 5528×3725×3741 Operating weight (t)(excluding ripper) 24.6 Engine model NT855-C280S10 Net power/rated speed (kW/rpm) 180/2000 Ground pressure (Mpa) 0.078 Blade type Straight tilting blade U blade Blade capacity(m3) 7.8 for straight tilting blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Näytä lisää
