Shantui SD32Plus

Veroton hinta

Hinnasta sovitaan erikseen

Compnay LOGO
Images1

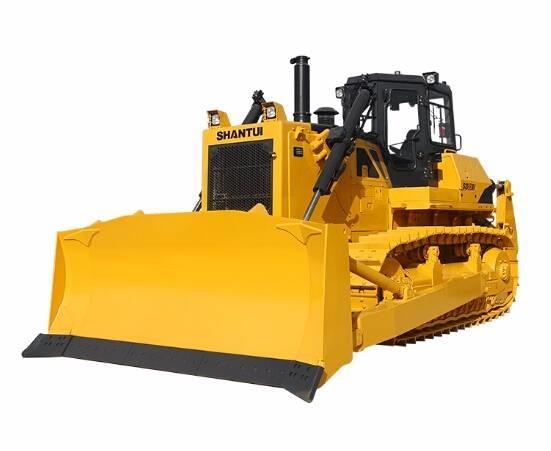

Shantui SD32Plus Telaketjupuskutraktorit
FavoriteSuosikki
shareJaa
Save searchTallenna haku
Tulosta

INFO

Tuoteryhmä
Telaketjupuskutraktorit
Merkki / malli
Shantui SD32Plus
Vuosimalli
2018
Erityistä
Uusi/Käyttämätön
Sijainti
Jining, Shandong, China
Maa
Kiina
Yleisarvosana
1
2
3
4
5
Mascus ID
B9245321

LISÄTIEDOT

Varastonumero
SD32Plus
Viim. katsastus
yes
Huoltosopimus
Kyllä
Työleveys
413 cm
Valmistenumero
SD32Plus
Kokonaispaino
37 200 kg
Blade type
Straight blade
Alarunko
Tela-alusta
Päästöluokka
Stage II
Ohjaamotyyppi
Umpihytti
Moottori
Cummins NTA855-C360S10
Moottorin teho
235 kW (320 hv)
Telojen leveys
610 mm
Vaihteisto
Shantui
Kuljetusmitat (PxLxK)
8560 x 4130 x 3640 mm
Alkuperäinen väri
yellow
Renkaiden merkki
Shantui
Kunto tiedot/Takuu
ISO9001
Eturenkaiden kunto
100
Valmistusmaa
Kiina
Equipped for
propertynames.pp_equippedfor_2100012
Toimitusehdot
FOB, CFR, CIF, EXW
Sertifikaatit
EPA, CE, ANSI
Muut varusteet
Vinssi
Ilmastointilaite
Lisähydrauliikka
Multi shank ripper
Näytä lisää
Lisätietoja
Technical Features ●Cummins NTA855-C360S10 engine features strong power and high efficiency and energy-saving. ●The high reliability hydraulic torque converter, the power shift transmission, and two-stage spur gear final drive feature high power transmission efficiency and high durability and productivity. ●The engine can run normally and reliably under all load conditions and all hot environments required by the user, without overheating. ●The integrally injection molded instrument panel features reasonable layout and beautiful modeling and realize the automatic diagnosis and whole-process monitoring for the malfunctions in domestic market. ●The optimized working lamp arrangement improves the lighting performance of vehicle. ●The safety facilities including reversing alarm and the working warning lamp are equipped. ●The main frame can absorb the high strength impact, vibration, load, and torsion generated during the operations to support the continuous high-strength operations of machine under severe working condition. ●The external working valves ease the daily maintenances and realize better maintainability for the valves. ? ●The PPC pilot controls achieve better labor-saving and convenient operations. ●The working device system pressure is increased to 21MPa, featuring high efficiency and energy-saving. ●The low-drive final drive is equipped to provide move powerful drive force and efficient gradeability. ●The balance beam can reduce the impact load transmitted to the chassis system to improve the trafficability of machine on uneven terrains. ●The pilot control system features light and flexible operations. ●The gearshift, steering, and accelerator controls are arranged on the left side of the driver, with the adoption of flexible shaft mechanism. The working device controls are centrally arranged on the right side of the driver, featuring comfortable and convenient controls. Performance Parameters Length × width × height (mm) (excluding ripper) 8560×4130×3640(including ripper) Operating weight (t) (excluding ripper) 37.2 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.105 Blade type Straight tilting blade Angle blade Semi-U blade Blade capacity(m3) 10 for straight tilting blade 6.2 for angle blade 11.7 for Semi-U blade Applicable Working Conditions Bulldozing, digging, landfill, and other bulk operations.Näytä lisää

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 Kiina
