Greentec 952MEGA/20

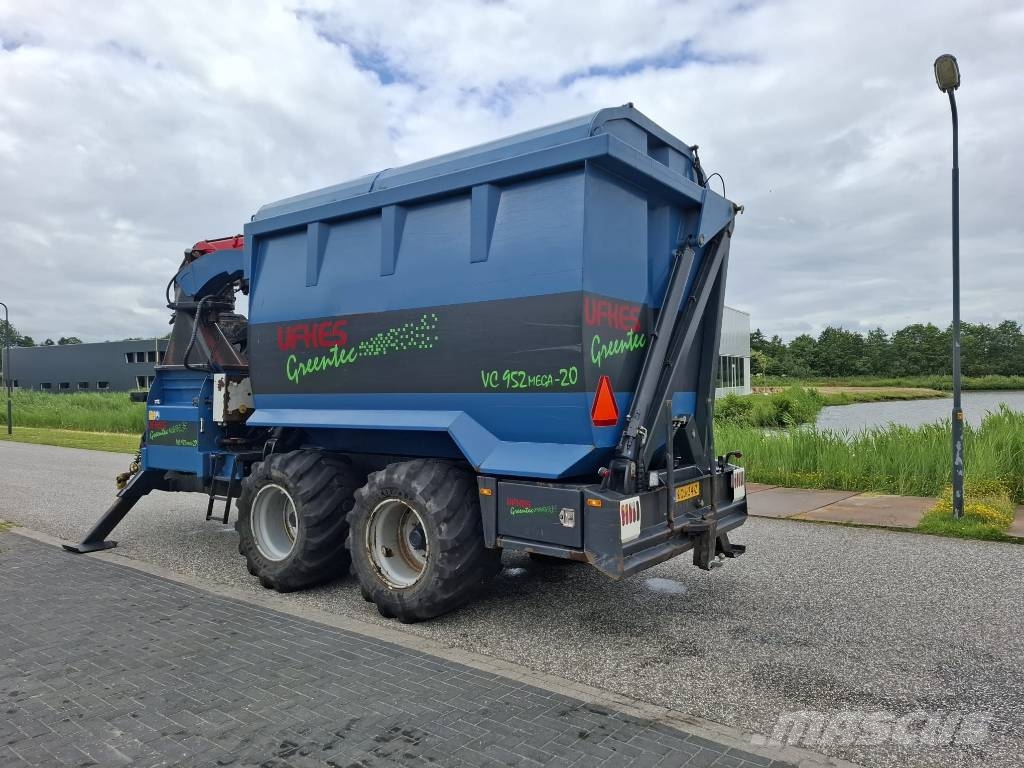

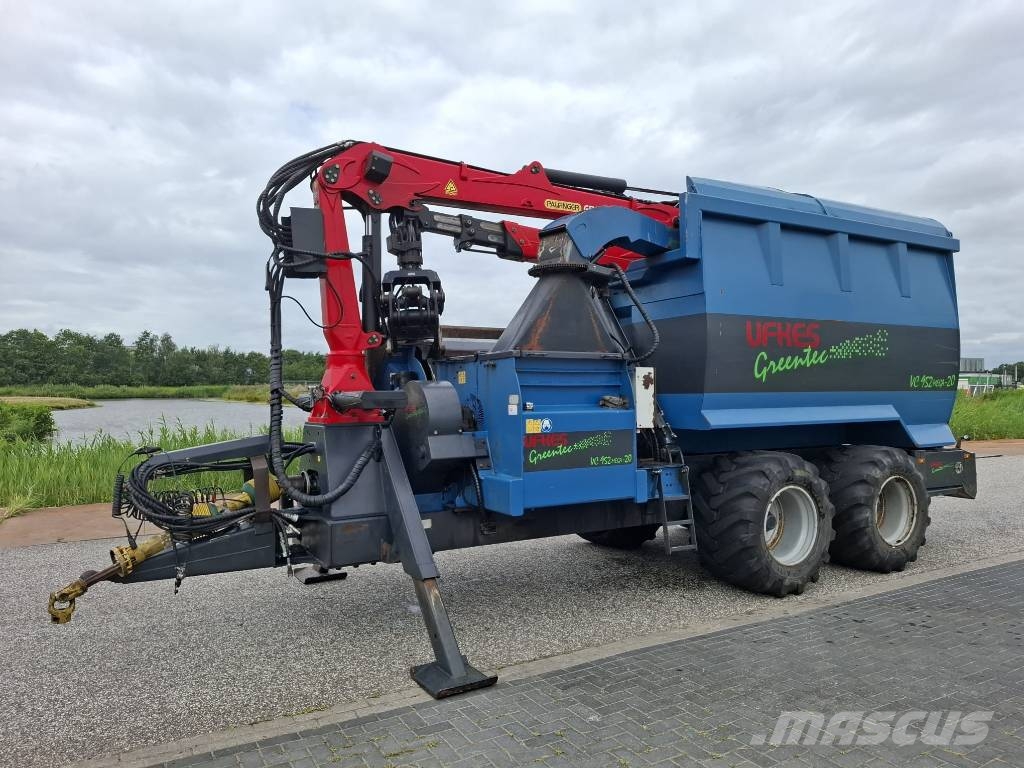

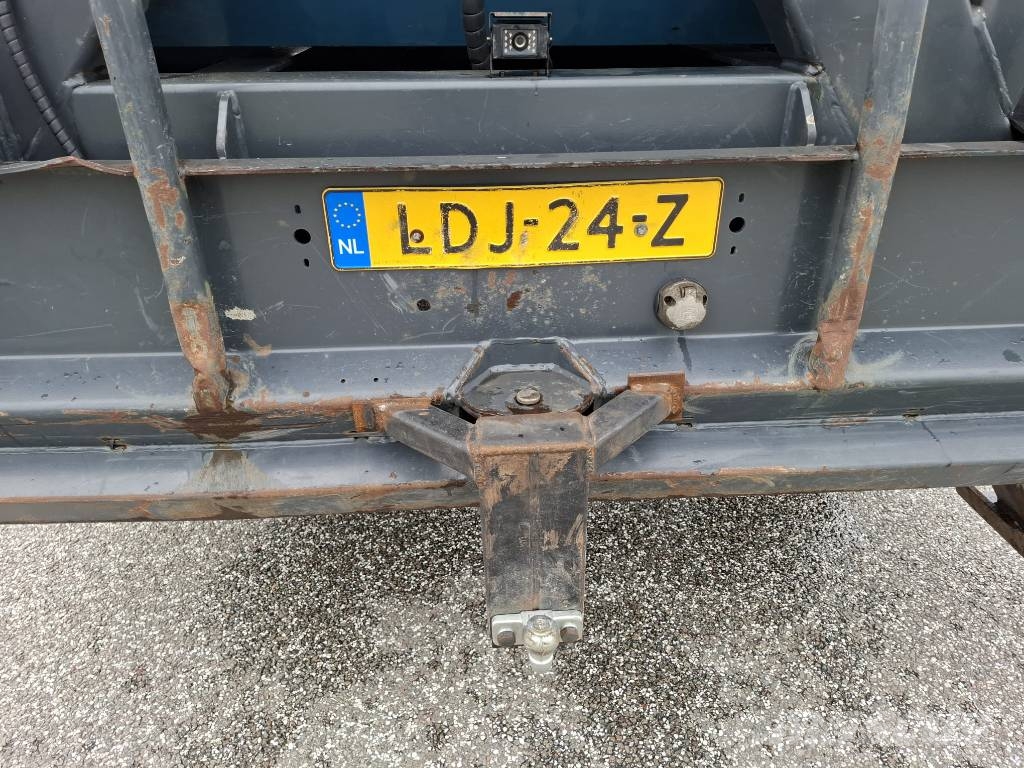

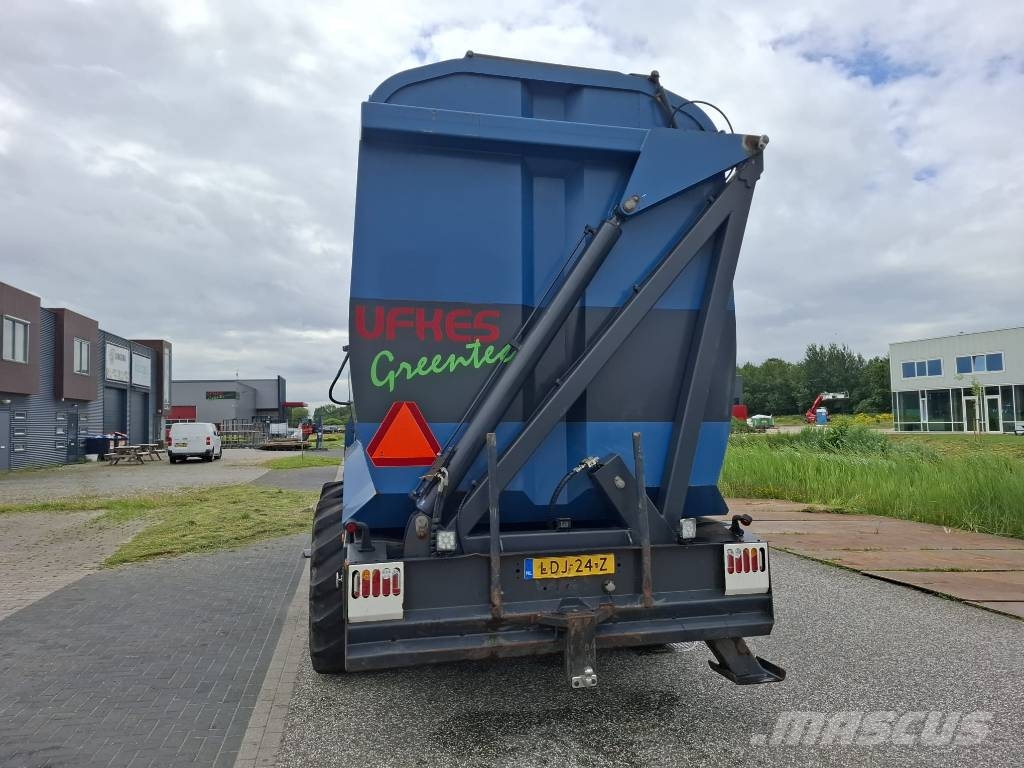

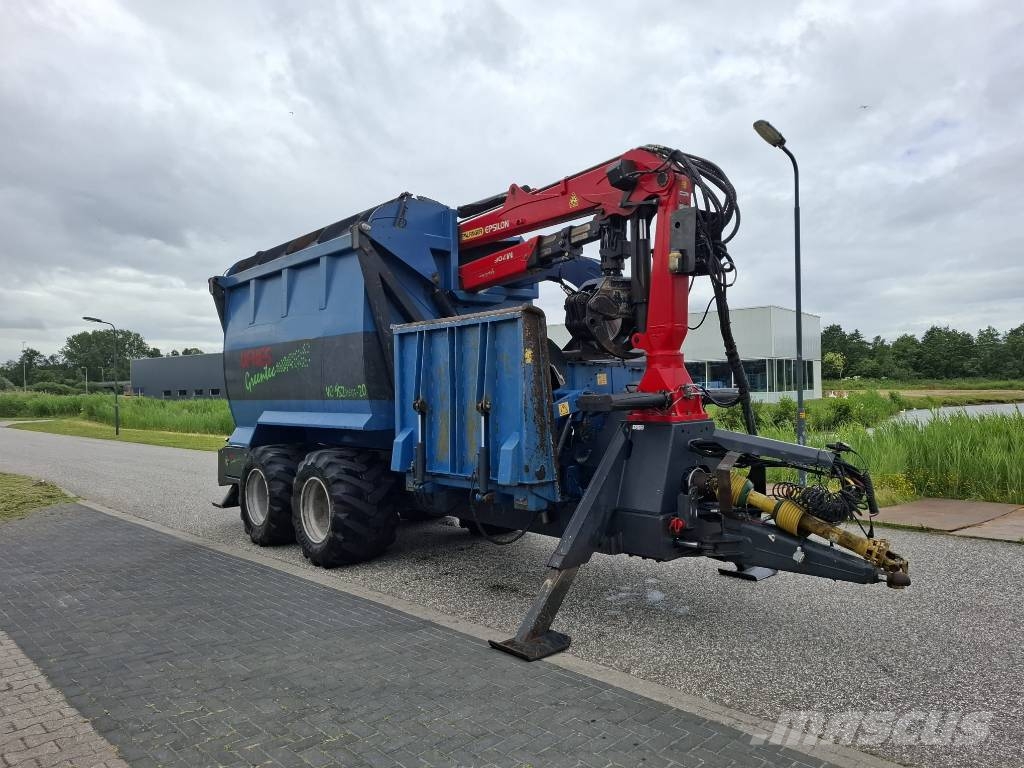

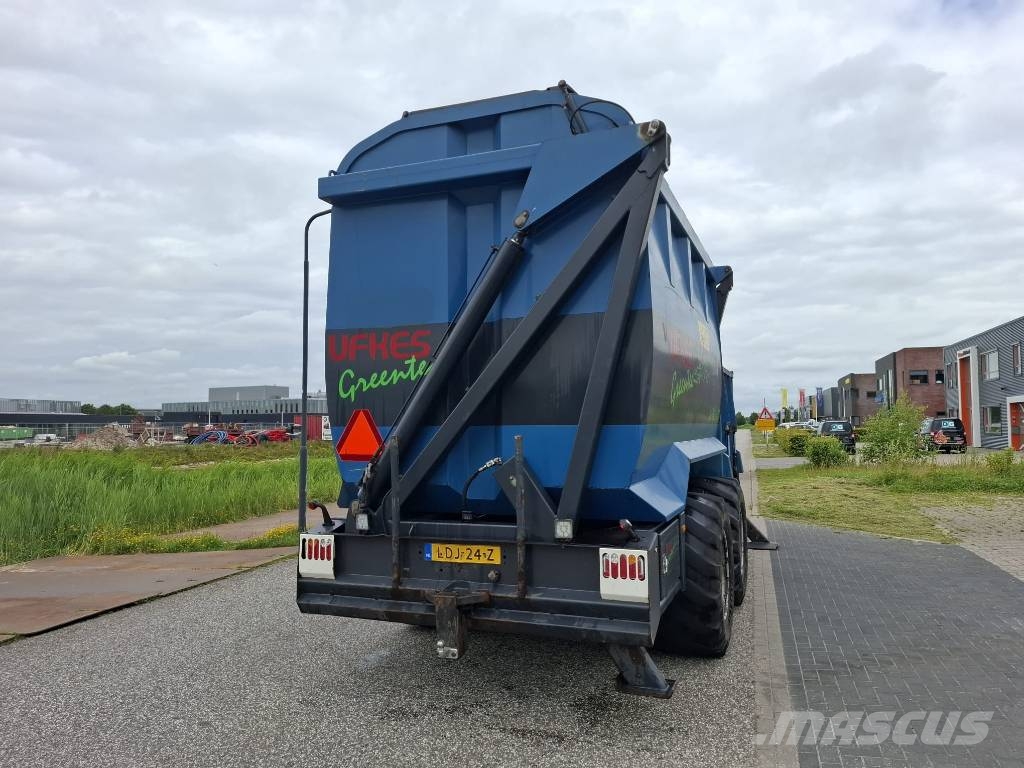

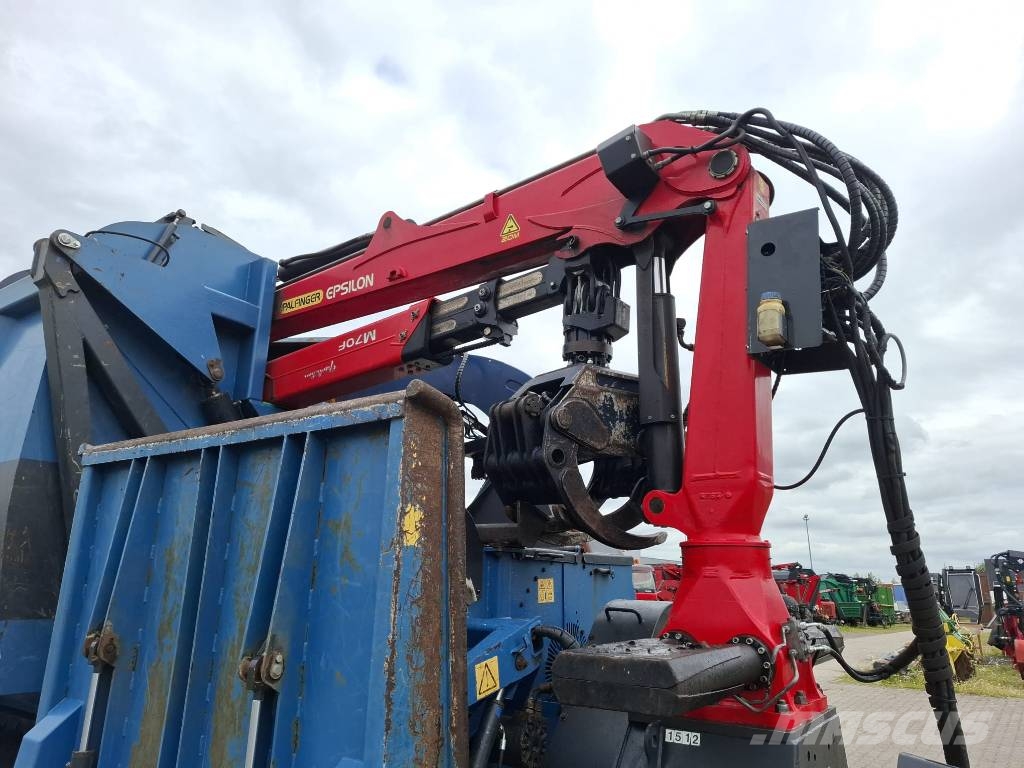

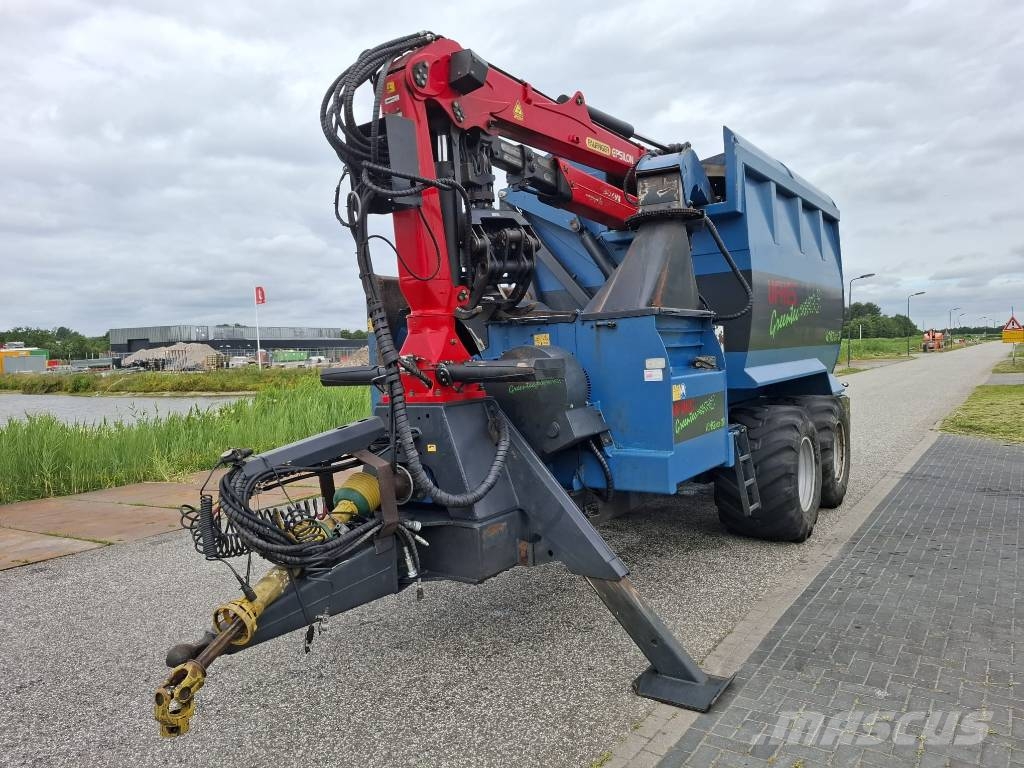

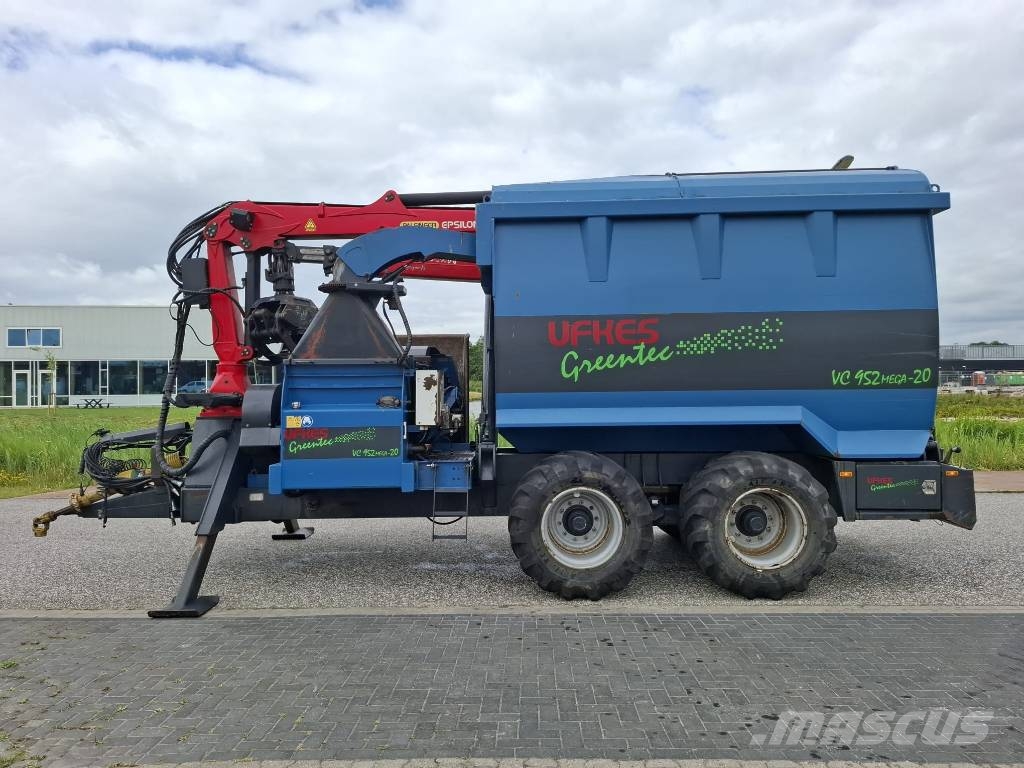

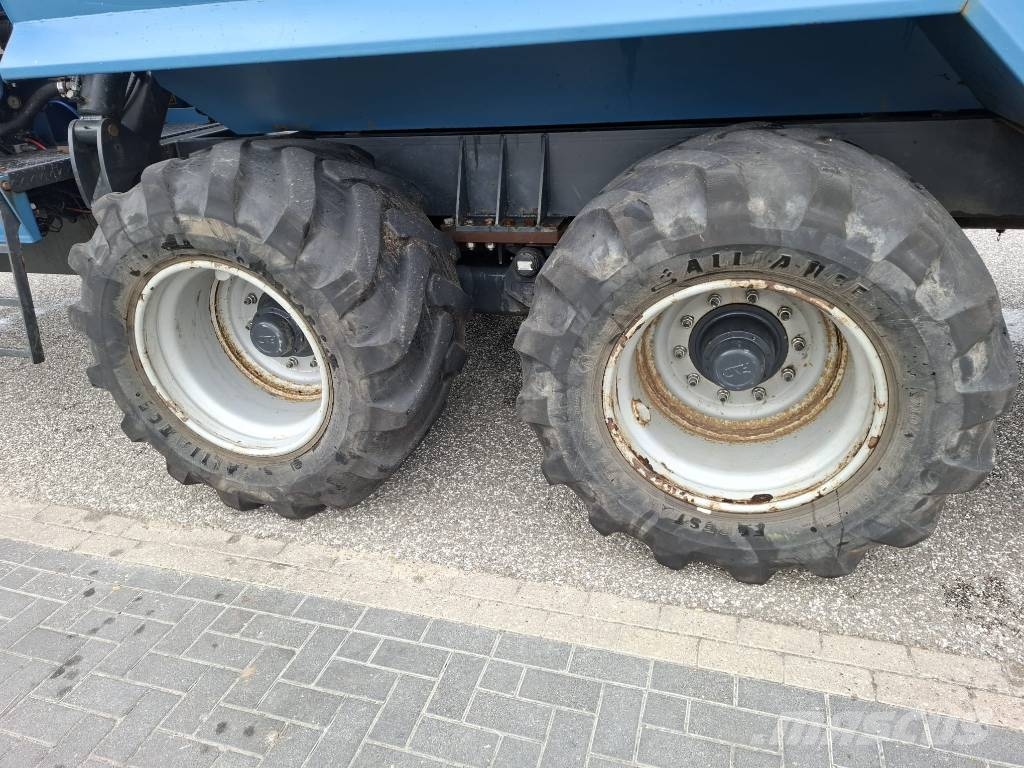

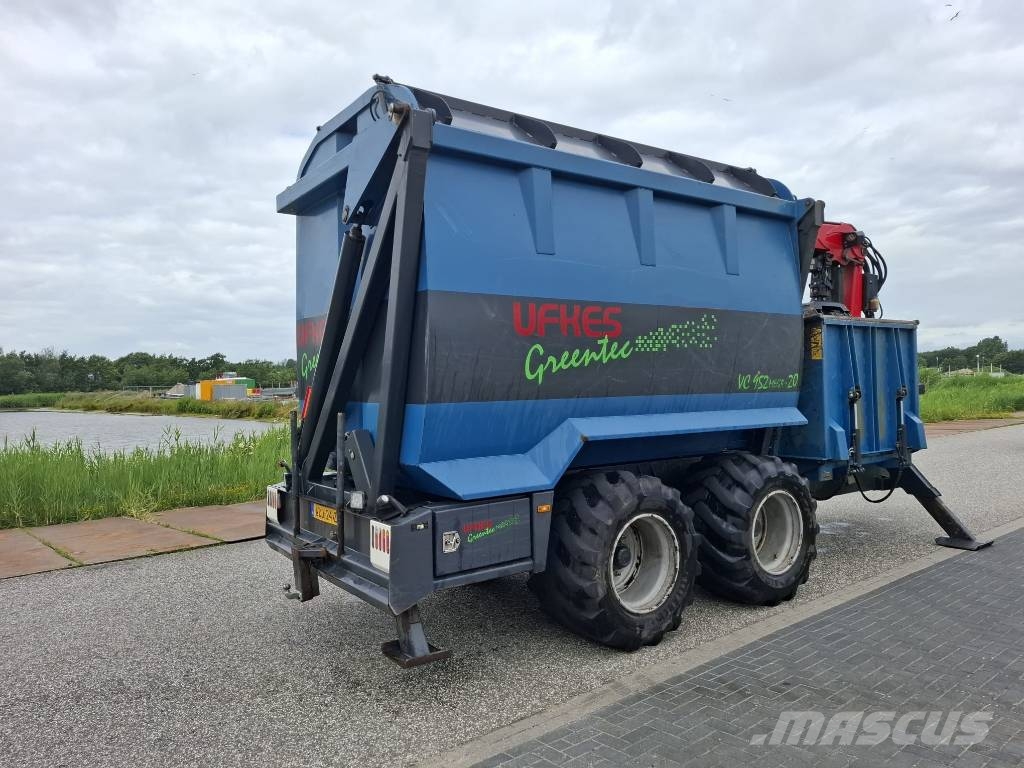

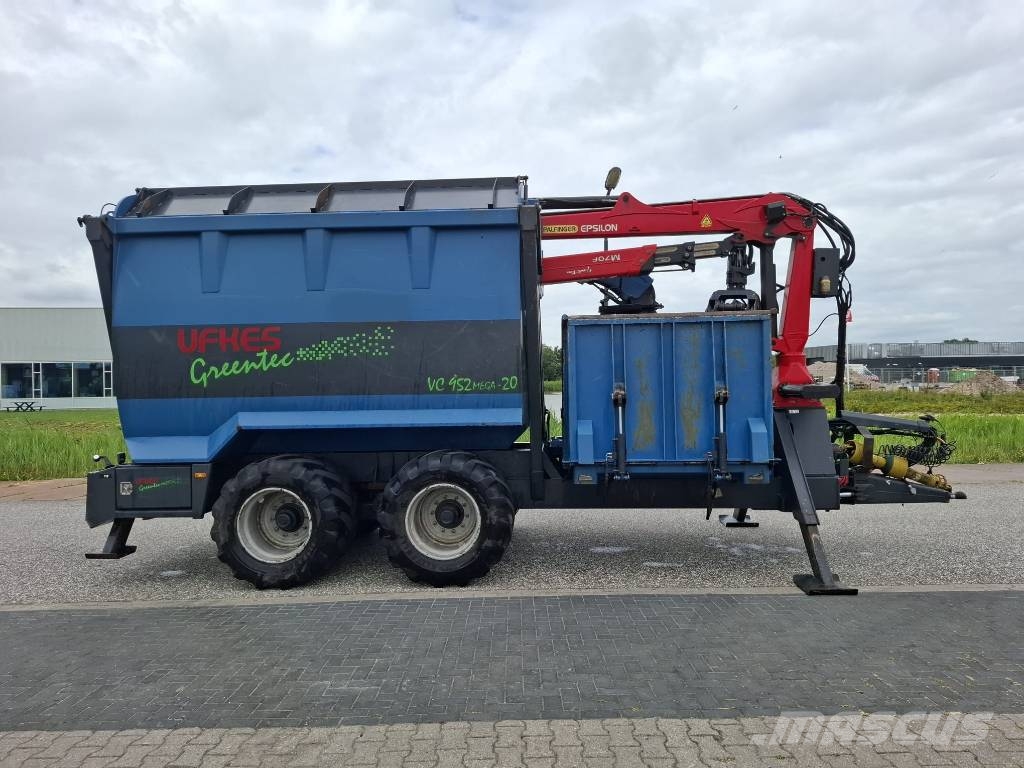

Greentec 952 MEGA/20 Chipper Combination (UM0000649) Wood chipper: Greentec 952 MEGA drum chipper Infeed opening: 600 x 1,450 mm Max. infeed: 550 x 1,060 mm Drum: Ø 960 x 930 mm Upper roller: Ø 500 x 1,060 mm Lower roller: Ø 300 x 1,060 mm Vertical infeed rollers: Ø 300 x 610 mm Number of knives: 4 Number of counter knives: 1 Discharge chute: 340° rotation Power requirement: 275–450 hp Heavy-duty driveline with PTO shaft rated up to 450 hp, tractor side 1 3/4", 20 splines, Walterscheid P70 (without wide-angle joint) Forward-extended drive shaft with additional bearing support ABF no-stress infeed system Heavy-duty infeed table, hydraulically foldable Hydraulic discharge chute rotation Hydraulic discharge chute adjustment, up/down for transport Twin discharge deflector, electrically adjustable High-tip trailer: Greentec H20/20 high-tip trailer chassis Length: approx. 8.90 m Width: 2.65 m Height: 3.70 / 3.80 m Container capacity: 20 m³ Tandem axle: 4-wheel braking system Load capacity: 22 tonnes Tyres: 710/45R26.5 Forest Tipping pivot height: 3.45 / 3.55 m Coupling: 50 mm, rotating Crane mounting platform at the front of the drawbar, equipped with hydraulic extendable support legs on both sides Hydraulic extendable support leg at the rear right Equipped with rear towing hitch Tips to the right Front of the high-tip container equipped with a large chip inlet opening Crane transport position: double-folded at the front left inside the container Steel top cover with hinged overflow flap (top completely enclosed) Timber crane: Palfinger M70F101 timber crane Boom system: 101 Gross lifting moment: 102 kNm Net lifting moment: 65 kNm Max. reach: 10.1 m Net slewing torque: 26 kNm Slewing range: 385° 2-stage extension up to 3,400 mm Indexator G121 rotator TG 28 SR 4-tine grapple Multi-control joystick operation with IQAN control system and colour display.
